ServiceWire TrayCable TCNH500/2
- Product SKU: YC858
- Product Name: ServiceWire TrayCable TCNH500/2
- Manufacturer: SERVICE WIRE COMPANY

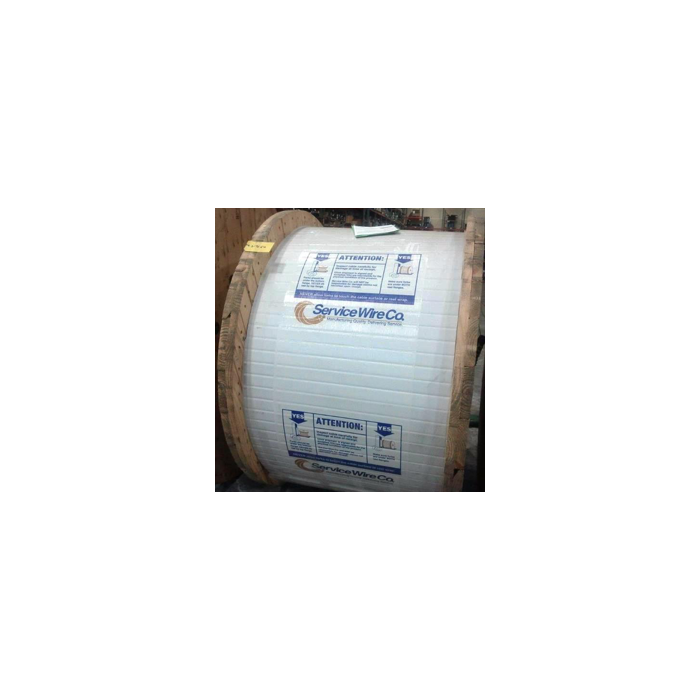

1,032 Feet of Tray Cable by Service Wire Company P/N: TCNH500/2 - Model 500 KCMIL - 2 CDRS XHHW-2/EnviroPlus TC Zero Halogen, Limited Smoke 600 Volt Copper. Cable was purchased new and kept in dry storage.
- Nominal Weight 4,196 pounds
- With 110 MILS Jacket and 65 MILS Insulation
- 430 AMPS
- Overall Diameter 2.14 Inches
- Minimum Bending Radius 13.5 Inches
- Maximum AC Resistance 0.0275 OHM/MFT
- Inductive Reactance 0.0252 OHM/MFT
- Maximum Pulling Tension 8,000 pounds
- Maximum Sidewall Pressure 500 LB/FT-RAD
- Cable Capacitance 346.74 PF/FT
Specification available upon request. Looking for take all offers. Condition: New
- Product Availability: Available
