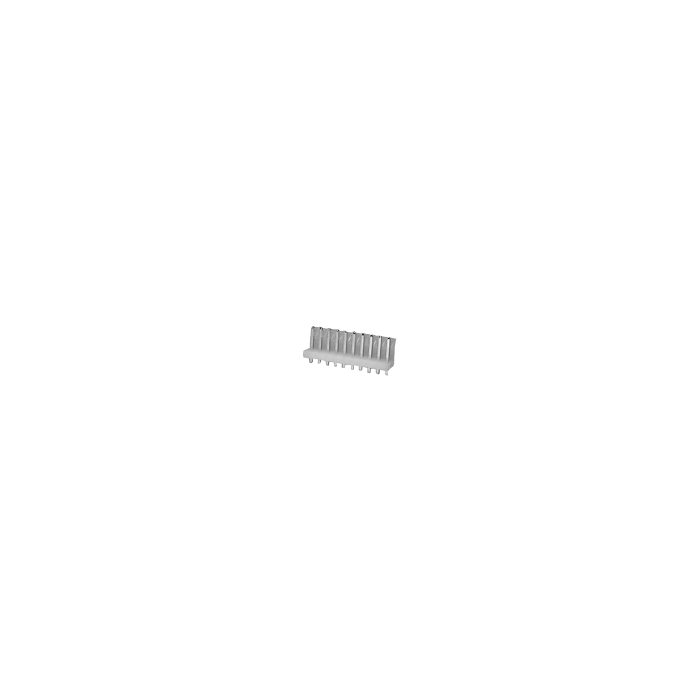

.100" CENTERS LOCKING POLARIZED HEADERS
- Product SKU: GE420
- Product Name: .100" CENTERS LOCKING POLARIZED HEADERS
- Manufacturer: PHILMORE
Locking polarized headers - .100" centers. Voltage rating: 250V AC, DC; withstand voltage: 1000V AC/minute. Current rating: 5 A AC, DC; insulation resistance: 1000m ohm Minute. Applicable PC board: .063 (1.6mm); thickness: Initial Value / 10 ohms Max. Temperature range: -25ºC - +85ºC. Contact resistance: after environmental testing / 20m ohms max.
Material: Post - Brass / Tin Plate. Base - Nylon 66, UL 94V-2.
Part No. | Position | Width | (mm) -A |
---|---|---|---|
GE421 | 2 | .200" | (5.08) |
GE422 | 3 | .300" | (7.62) |
GE423 | 4 | .400" | (10.16) |
GE424 | 5 | .500" | (12.70) |
GE425 | 6 | .600" | (15.24) |
GE426 | 8 | .800" | (20.32) |
GE427 | 10 | 1.000" | (25.40) |
GE428 | 12 | 1.200" | (30.48) |
Condition: New
