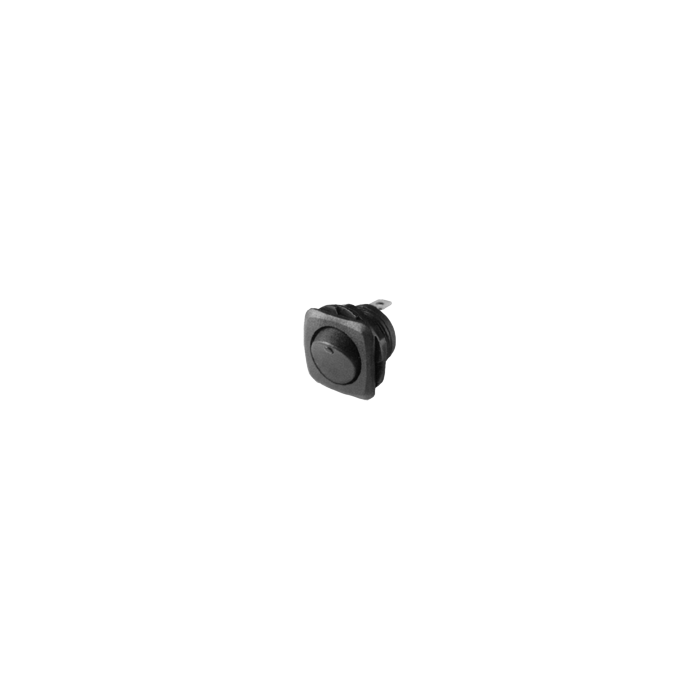

110V NEON LIGHTED ROCKER SWITCHES
- Product SKU: GD400
- Product Name: 110V NEON LIGHTED ROCKER SWITCHES
- Manufacturer: -ASSORTED
Lighted, square bezel nut mounted round rocker switches. SPST, on-off action, AC lamp voltage is 110V neon. Panel cut-out: 20.2mm (.79"), maximum panel thickness 6.0mm. Additional Specs:
- Current rating: 6A 250VAC, 10A 125VAC
- Initial contact resistance: <50Meg Ohms @ 12VDC
- Insulation resistance: >100Meg Ohms
- Dielectric strength (open contacts): >1500V for 1 minute
- Contact material: silver plated brass
- Terminal material: copper alloy
- Body material: nylon (UL 94V-2)
- Actuator & bezel: nylon (UL 94V-2)
- Terminal type: .187" quick connect
Part No. | Lamp color |
---|---|
GD401 | Red |
GD402 | Amber |
GD403 | Green |
Condition: New
- Product Availability: Available
