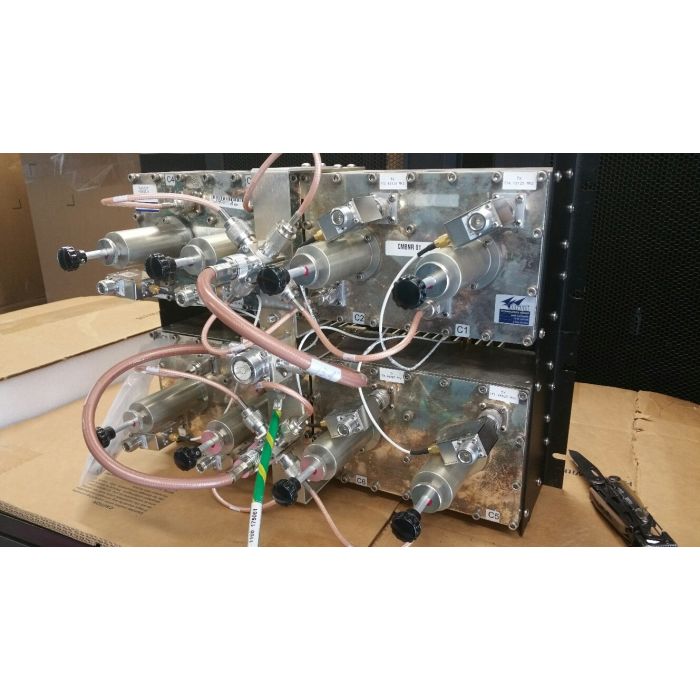

44-83C/83D-50-1D-A series 700/800 MHz Ceramic Transmit Combiner

44-83C/83D-50-1D-A series 700/800 MHz Ceramic Transmit Combiner
  • Product SKU: 44-83C/83D-50-1D-A series
  • Product Name: 44-83C/83D-50-1D-A series 700/800 MHz Ceramic Transmit Combiner
Description:

Provides the high performance with minimum interference. Frequency Range763-776 MHz 851-869 MHzNumber of Channels2, 4, 6, 8Isolator TypeSingle JunctionInsertion Loss at Channel Spacings 500 kHz 2 channels: <2.7 dB 4 channels: <3 dB 6 channels: <3.3 dB 8 channels: <3.5 dB 250 kHz 2 channels: <3 dB 4 channels: <3.3 dB 6 channels: <3.6 dB 8 channels: <3.8 dB 150 kHz 2 channels: <3.8 dB 4 channels: <4.1 dB 6 channels: <4.4 dB 8 channels: <4.7 dB Continous Power per Channel110 WMinimum Return Loss at Feedline3 dB (due to antenna system failure)Input Return Loss20 dBOutput Return Loss>10 dBConnectorsN (F) input 7/16 DIN (F) outputOperating Temperature-10 to +55°CHeight2 channels: 7" 4 channels: 7" 6 channels: 10.5" 8 channels: 14"Width19-in Rack Mount <10"Weight2 channels: 13 lbs. (approx.) 4 channels: 27 lbs. (approx.) 6 channels: 40 lbs. (approx.) 8 channels: 53 lbs. (approx.) Like New condition. We have 8, 6, 4 and 2 Channel combiners.

  • Product Availability: Available
SKU
44-83C/83D-50-1D-A series

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • On time

    I was happy to know there was a specialist standing by to process my request.

    By Steve Kayne on

  • Good to know you

    These guys managed to send me the order in 3 different packages for a better shipping quote.

    By Robert Gardner on

  • Until next time

    I will personally recommend surplustraders to my friends. Best service around.

    By Phil Flores on

Add to Wishlist
main product photo

How can I help you?

Hi, I'm Marshall Duskes. Click on Live Chat, pick up the phone, or use one of the other platforms here to get in touch with me about this product.

Toll Free:866-266-7638

International:514-619-6981

Provides the high performance with minimum interference. Frequency Range763-776 MHz 851-869 MHzNumber of Channels2, 4, 6, 8Isolator TypeSingle JunctionInsertion Loss at Channel Spacings 500 kHz 2 channels: <2.7 dB 4 channels: <3 dB 6 channels: <3.3 dB 8 channels: <3.5 dB 250 kHz 2 channels: <3 dB 4 channels: <3.3 dB 6 channels: <3.6 dB 8 channels: <3.8 dB 150 kHz 2 channels: <3.8 dB 4 channels: <4.1 dB 6 channels: <4.4 dB 8 channels: <4.7 dB Continous Power per Channel110 WMinimum Return Loss at Feedline3 dB (due to antenna system failure)Input Return Loss20 dBOutput Return Loss>10 dBConnectorsN (F) input 7/16 DIN (F) outputOperating Temperature-10 to +55°CHeight2 channels: 7" 4 channels: 7" 6 channels: 10.5" 8 channels: 14"Width19-in Rack Mount <10"Weight2 channels: 13 lbs. (approx.) 4 channels: 27 lbs. (approx.) 6 channels: 40 lbs. (approx.) 8 channels: 53 lbs. (approx.) Like New condition. We have 8, 6, 4 and 2 Channel combiners.
  • Product SKU: 44-83C/83D-50-1D-A series
  • Product Name: 44-83C/83D-50-1D-A series 700/800 MHz Ceramic Transmit Combiner
Description:

Provides the high performance with minimum interference. Frequency Range763-776 MHz 851-869 MHzNumber of Channels2, 4, 6, 8Isolator TypeSingle JunctionInsertion Loss at Channel Spacings 500 kHz 2 channels: <2.7 dB 4 channels: <3 dB 6 channels: <3.3 dB 8 channels: <3.5 dB 250 kHz 2 channels: <3 dB 4 channels: <3.3 dB 6 channels: <3.6 dB 8 channels: <3.8 dB 150 kHz 2 channels: <3.8 dB 4 channels: <4.1 dB 6 channels: <4.4 dB 8 channels: <4.7 dB Continous Power per Channel110 WMinimum Return Loss at Feedline3 dB (due to antenna system failure)Input Return Loss20 dBOutput Return Loss>10 dBConnectorsN (F) input 7/16 DIN (F) outputOperating Temperature-10 to +55°CHeight2 channels: 7" 4 channels: 7" 6 channels: 10.5" 8 channels: 14"Width19-in Rack Mount <10"Weight2 channels: 13 lbs. (approx.) 4 channels: 27 lbs. (approx.) 6 channels: 40 lbs. (approx.) 8 channels: 53 lbs. (approx.) Like New condition. We have 8, 6, 4 and 2 Channel combiners.
