The Series VTP Multi Range Air Velocity Transmitter can simultaneously display and output Air Velocity, Temperature and Pressure (optional). This is the first product to combine all 3 variables in one transmitter making the VTP an exceptional option for multi-variable measuring. The VTP utilizes an industrial 316 Stainless Steel armored RTD sensor as the thermal air velocity measuring component. Using a fully protected 316 SS sensor drastically extends the life of the air velocity sensor and also makes it insensitive to water, dust or corrosion. The VTP comes standard with a LCD and can simultaneously display air velocity, temperature, and pressure. The VTP is easily configured or adjusted in the field with the digital display and keypad. The Air Velocity Range and Pressure Range are both field adjustable as well as units of measure. Other adjustable parameters include signal dampening and low velocity cut off point. The VTP Air Velocity Transmitter can also be configured to measure and totalize flow in CFM or M3/h by entering the duct area where the measurement is taken. Installation of the VTP Air Velocity Transmitter is easy with the adjustable depth, removable flange. The standard product includes an integral design, but is also available with a remote mounted probe to accommodate any application.

• High Visibility Status Indication • Quick Installation • Standard Night Set Back • Audible Alarm • Multiple Mounting Options The Series AFA Siren™ Air Flow Alarm is an airflow monitor designed to provide visual and audible indications for decreases in airflow. Its color changing LED's provide vibrant visual indication of the operating status of the unit. A crisp and clear audible alarm will sound when airflow decreases below the designated set point. The Siren™ offers multiple mounting options including bracket mounting and interlocking strips. The unit can be powered through the 6-position terminal connection or by use of a power adapter. The Siren™ offers the ability to customize the minimum velocity set point should there be a need for a set point greater than the standard 80% of operational velocity. All units come standard with a night set back option for those who are energy conscious. The Siren also fulfills the exhaust alarm requirement needed to be in compliance with NSF/ANSI Standard 49. A quick installation process, one-touch calibration, and one-touch reset make for an easy set up and easy use.

The Series 251 wet/wet differential pressure transmitter utilizes a double diaphragm sensor technology that outperforms standard double sensor products in accuracy, reliability and static operating pressure. This differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 1000 PSI. The Series 251 features 316 stainless steel construction designed to meet NEMA 4X (IP 65) standards. The transmitter also offers exceptional field flexibility with a 5:1 turn down and comes standard with a certificate of calibration.

The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

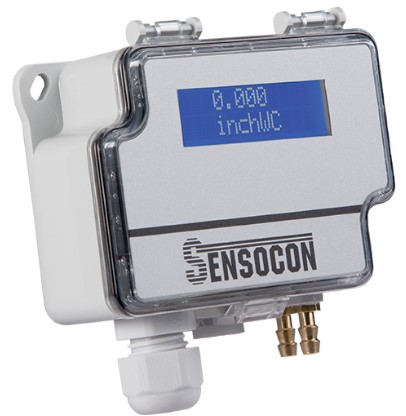

The Series DPT Multi-Range Differential Pressure Transmitter was designed specifically for the building automation and HVAC industry. With field selectable ranges down to 0.1 inches w.c., this product is ideal for monitoring building pressure, static pressure, differential pressure, or air velocity and flow. The Series DPT Differential Pressure Transmitter also has jumper selectable outputs for 4-20 mA or 0-10 V and unit selection giving additional flexibility. For a virtually maintenance free transmitter, order the optional automatic zero and the transmitter will perform its own zero point maintenance. The Multi-Range Differential Pressure Transmitter also has an optional backlit LCD for giving local indication.

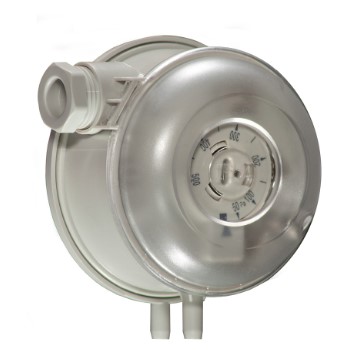

The Series 104 Differential Pressure Switch is a low-cost easy to use differential pressure switch for very low pressure applications. The differential pressure switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for2A @ 250V and can be set as low as 0.08” w.c. (20 Pa).

The Series Sz-5000 is a low cost, diaphragm operated, differential pressure gauge in a miniature housing with easy access to the zero adjustment. The Sz-5000 can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 5%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

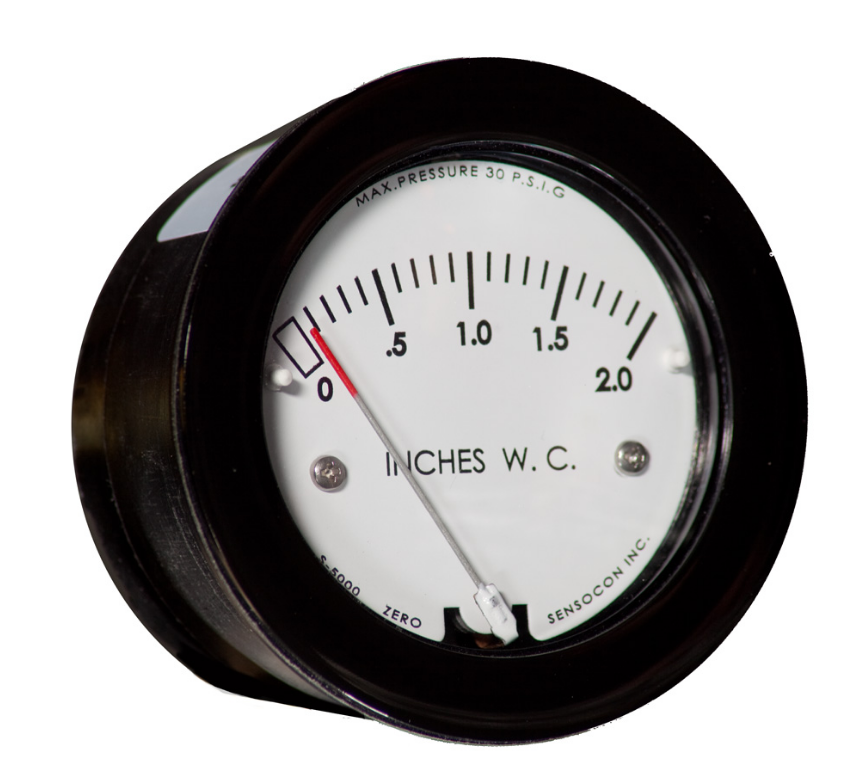

The Series S-5000 is a low cost, diaphragm operated, differential pressure gauge in a miniature housing. The S-5000 can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 5%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

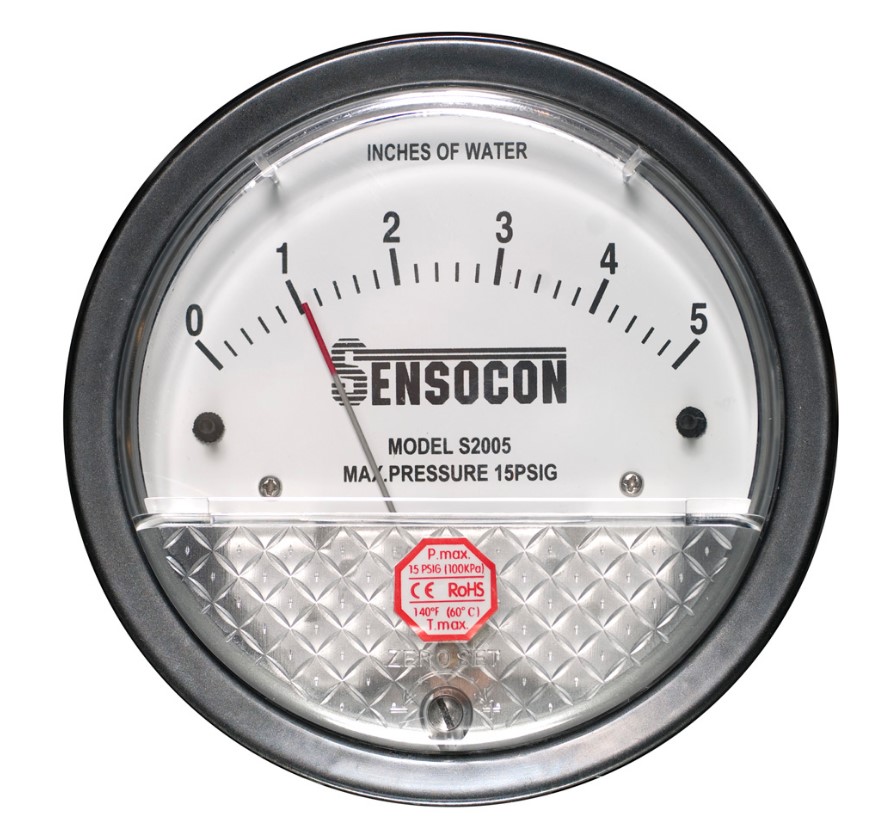

- Mounts in Industry Standard Holes - Accuracy 2% - Die Cast Aluminum Housing The Series S2000 differential pressure gauges are low cost, diaphragm operated, mechanical differential pressure gauges that may be used in all applications where the Dwyer® Magnehelic® brand gages may be used. The Sensocon® Series S2000 differential pressure gauge can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

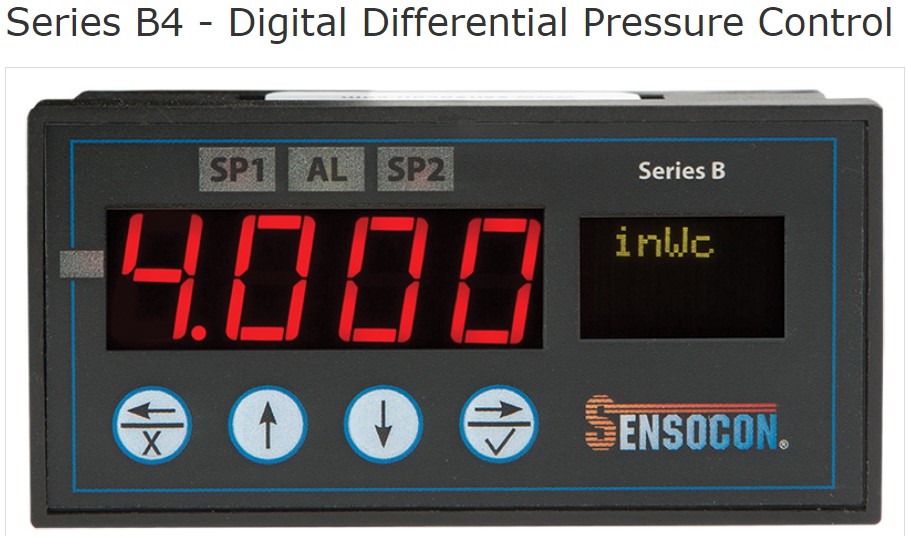

The Series B4 is a 1/8 DIN digital differential pressure controller for positive, negative, and differential pressure as well as velocity and flow. The patented Series B4 Differential Pressure Controller includes (2) 8A SPDT relays, and an optional digitally scalable 4-20 mA and 0-5 V output. The programmable control allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate user preferences. The Series B4 is easily mounted in a 1/8 DIN cut-out with a panel depth of only 2.1 inches (53 mm).

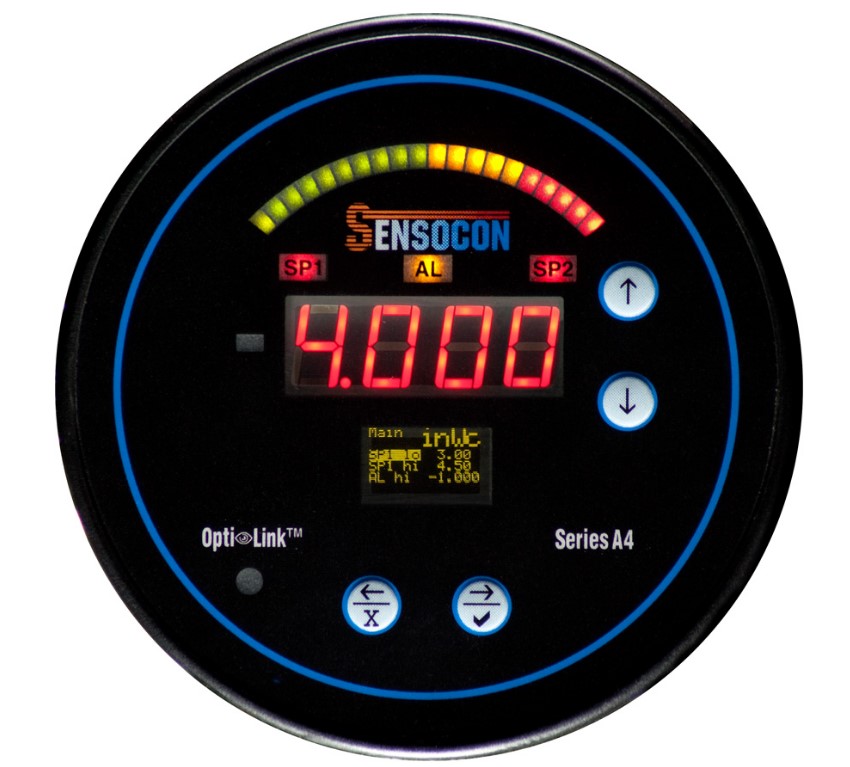

The Series A4 digital differential pressure controller is a patented microprocessor based pressure controller for positive, negative, and differential pressure as well as velocity and flow. The Series A4 differential pressure controller includes (2) 8A SPDT relays and an associated programming menu that allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display or uploaded using an Opti-Link™ programming key. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate many applications. Compared to other mechanical products, the Series A4 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance at a similar price.

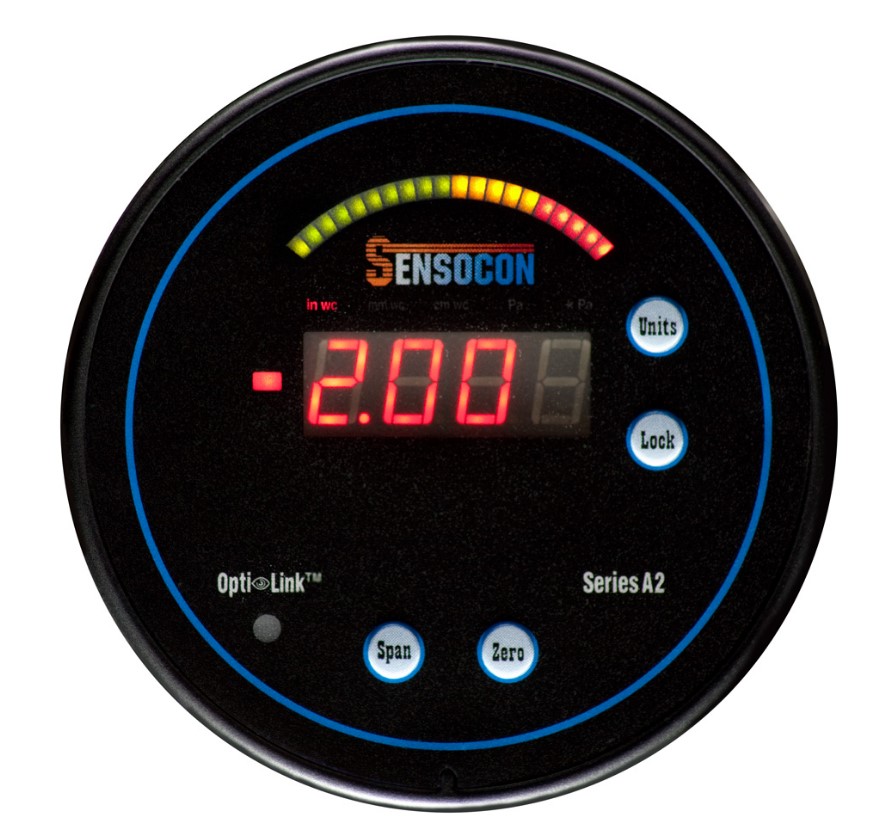

The Series A2 digital differential pressure gauge is a patented microprocessor based digital pressure gage for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A2 differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A2 is also available with 0.5% or 0.25% accuracy. The A2 digital differential pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A2 features a bright ½" LED display and process arch, which gives the gauge improved readability and precision. The A2 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A2 offers an improved look, and performance compare to mechanical gauges.

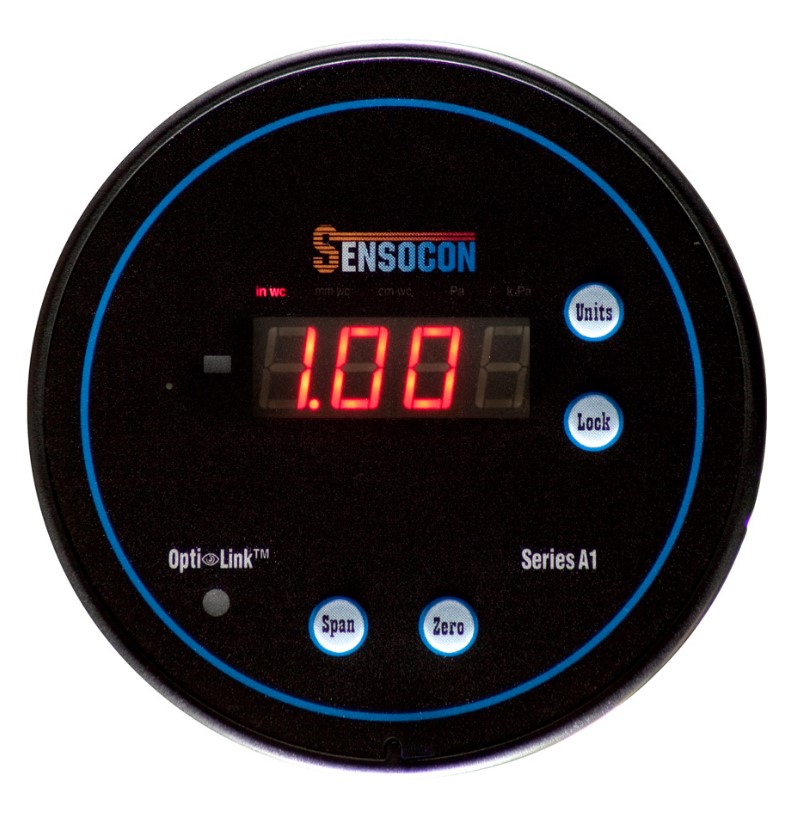

The Series A1 Digital Differential Pressure Gauge is a patented microprocessor based digital pressure gage for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 digital differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% or 0.25% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½" LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compared to mechanical gauges.
