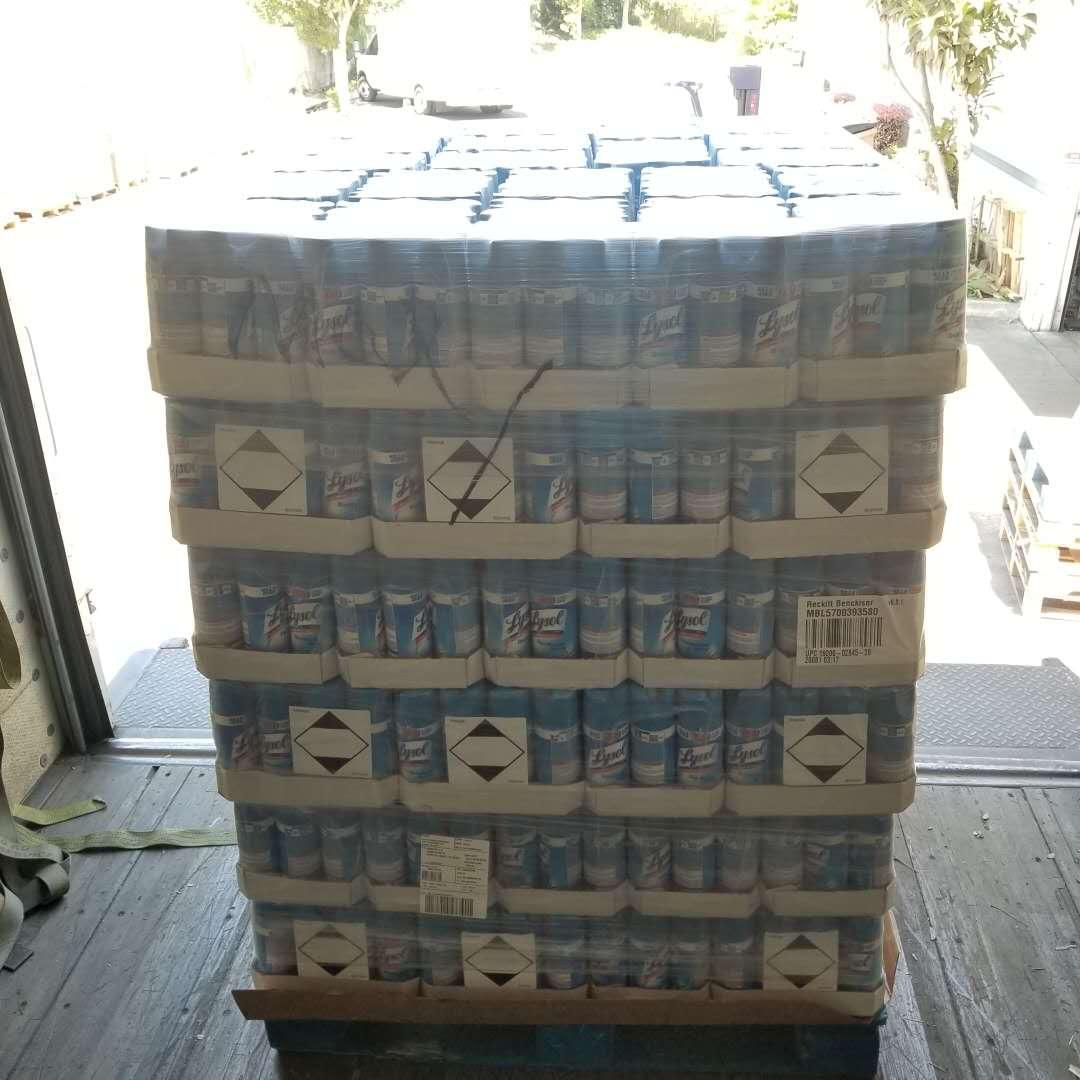

Kills 99% of viruses and bacteria 1512 cans per pallet Pallet Dims 1630 lbs 48x40x54iN

magnet #1 , 18-22kgauss, 1 1/8"inch wide by 1/8 thick

CROWN SHAPED MAGNET : 18-22kgauss, 1 1/8 " inch wide, 3/16 inch thick

These are thin-film Copper Indium Diselenide (CIS) solar cells. Recent production, first quality, made by a major solar manufacturer. 60mm x 60mm x 2mm thick (2.4" x 2.4" x .08") The active semiconductor material is deposited on the front of the glass, tinned ribbons are bonded to the edges, then the whole cell is covered with clear tough plastic to protect the cell and ribbon. They are environmentally protected and ready to use. You just solder to the ribbon and mount them in your project. The cells put out about 4.5VDC open circuit and about 100MA short circuit. Maximum power of the ones tested is about .25 watt (80MA at 3.2VDC). CIS is the most stable and rugged of the thin film solar technologies and is about twice as efficient as amorphous silicon. It is more efficient under cloudy or partial shade conditions than crystalline silicon. CIS is also radiation resistant, and therefore often used in spacecraft applications. You can connect them in series for more voltage and in parallel for more current. These should be good for walkway lights, battery charging, remote instrumentation or data loggers, educational projects and other DC electrical applications. Unlike amorphous silicon panels, CIS panels do not degrade due to sunlight exposure. In fact after at least 2 hours of exposure to sunlight of at least 1/2 standard intensity, the output will increase by about 10%. With the first exposure, the semiconductor material is annealed and the output is then stable at the higher level. (This is called light soaking). We have a very large quantity for immediate sale. TEMPORARY SPECIAL!!!! $1.00 ea in 1000 lot!

Compact and light, this multimeter has a large, 3.5 digit 7-segment, half-inch high LCD display. Max. reading of 1999. Measures DVC (0,1mV - 1000V), ACV (0,1V - 750V), DCA (0,1mA - 10A), Ohm (0,1 - 2M) diode forward voltage drop & hFE for bi-polar PNP and NPN transistors. Overall size: 126mm x 68mm x 24mm. Power source: 9V battery. Has low battery indication and comes with tester cable.

Accessories for use with 12" and 24" flexible lights - our part numbers GF368 & GF393. Wire caps, end caps and mounting clips. Two kinds of each, for use with either single-color lights or red/green/blue lights, sealed type only. Wire caps & end caps in packages of four, mounting clips in packages of six. Wire caps: Part No. Use with GF491 Single-color light GF492 Red/blue/green light End caps: Part No. Use with GF493 Single-color light GF494 Red/blue/green light Mounting clips: Part No. Use with GF495 Single-color light GF496 Red/blue/green light

These LED lights are surface mounted on 24" flexible circuit board strips and can be used in locations where bulbs would be impractical. 12VDC working voltage, CE and RoHS compliant. Cut length every three LEDs, or 4". Available in waterproof, sealed (PCB color white) or non-waterproof, unsealed (PCB color brown). 18 LEDs per strip, 50/50 SMD. Packaged with additional 6" leads and one each of wire cap & end cap. Sealed type: Part No. Color GF394 Red GF395 Yellow GF396 Pure white GF397 Warm white GF398 Green GF399 Blue GF400 Red/green/blue Unsealed type: Part No. Color GF401 Red GF402 Yellow GF403 Pure white GF404 Warm white GF405 Green GF406 Blue GF407 Red/green/blue

These LED lights are surface mounted on 12" flexible circuit board strips and can be used in locations where bulbs would be impractical. 12VDC working voltage, CE and RoHS compliant. Cut length every three LEDs, or 4". Available in waterproof, sealed (PCB color white) or non-waterproof, unsealed (PCB color brown). 9 LEDs per strip, 50/50 SMD. Sealed type: Part No. Color GF372 Red GF373 Yellow GF374 Pure white GF375 Warm white GF376 Green GF377 Blue GF378 Red/green/blue Unsealed type: Part No. Color GF379 Red GF380 Yellow GF381 Pure white GF382 Warm white GF383 Green GF384 Blue GF385 Red/green/blue

WE CALL IT BY DIFFERENT NAMES... Earthquake Machine, Grand-Daddy Vibrator, and more... This is a unique product from Surplus Traders. Basic motor is 1.4 inches in diameter and runs on voltages from as low as 4 volts to as high as 14 volts. Low current consumption: 200ma@5VDC, 1000ma @ 7VDC, 2.0A @ 10VDC and 2.2A @ 12VDC. Maximum speed is approx 5000 RPM, but operation at this speed, with this weight, is not recommended. Can be used to vibrate: containers, fluids, wall, beds, chairs, deer feeders, etc. Ideal as a signalling device for the hard of hearing, as well, when attached to furniture, doors or walls. We have had many, many requests for a motor of this size and power and now have it available. Order being taken now for future delivery. NOTE: due to the vibration magnitude, this motor is NOT recommended for "personal" devices unless the motor and weight are fully and securely encased. Contact Ted Duskes at 1 800 341 6468 or Ted to reserve your stock now and negotiate large quantity pricing! Are your prototyping a new product? 3 sample units - $100 shipping included (to new product developers only! Click the "more info" icon for a different view. NOTE: it is recommended that this motor always be used in an enclosed (preferably ventilated) housing to prevent injury as the rotating weight has high destructive force capability.

General purpose strip-board has holes in patterns of 6, spaced on 0.10" centers, .037" in dia., and has inter-leaved power & ground rails to permit easier distribution of power for circuit. Accepts 96-pin DIN-41612 VME connector for board-to-board or backplane connections and holes are provided for latches. Etched FR-4 glass-epoxy w/one oz. copper on both sides, tinned. Dimensions: 3.9" x 6.3" x 1/16". 38 rows by 62 columns of holes, total.

Two types of wide band toriod cores. For use as inductors & transformers, antenna matching and more. Part No. Type O.D. Size GF181 TF37-43 0.37" GF182 FT50-43 0.5"

Busboard that includes footprints to accommodate DB-9, handset & sub-mini jacks, BNC and DB-25 jacks, two phone jacks & coaxial power jack, as well as an SPDT switch. Zigzag circuit patter for ICs & all standard components. 76 separate copper traces with .037" dia. holes on 0.10". RoHS compliant.

Prototyping board has holes in copper patterns in groups of 6, spaced on 0.10" centers & .037" diameter. Total holes 38 rows x 62 columns. Etched FR-4 glass-epoxy w/one oz. copper tinned for better soldering. 3.9" x 6.3" x 1/16".

Positive acting, presensitized PC boards using FR-4 fiberglass substrate. In sizes 2 x 2" to 12 x 12" and 1/16" or 1/32" thickness. The 2 oz. boards have twice the standard thickness of copper. Part No. Size Copper Wt./sides Thickness GF190 2" x 4" 1 oz./one 1/16" GF191 3" x 4" 1 oz./one 1/16" GF192 3" x 4" 1 oz./two 1/16" GF193 3" x 6" 1 oz./one 1/16" GF194 4" x 6" 1 oz./one 1/16" GF195 4" x 6" 1 oz./one 1/32" GF196 4" x 6" 1 oz./two 1/32" GF197 6" x 6" 1 oz./one 1/16" GF198 6" x 6" 1 oz./two 1/16" GF199 6" x 9" 1 oz./one 1/16" GF200 6" x 9" 1 oz./two 1/16" GF201 6" x 9" 1 oz./one 1/32" GF202 6" x 9" 1 oz./two 1/32" GF203 6" x 12" 2 oz./one 1/16" GF204 6" x 12" 2 oz./two 1/16" GF205 7" x 10" 1 oz./one 1/16" GF206 12" x 12" 1 oz./one 1/16" GF207 12" x 12" 1 oz./two 1/16"

These strip protoboards can be cut to make smaller boards. Copper strips on one side, there are 0.40" dia. holes on 0.10" centers which accept common component leads. Dimensions: 3 15/16" W x 6 5/16" L. Also available in 9 13/16" lengh - ask for GF161.

Double-sided board of etched FR-4 glass epoxy, one ounce copper on both sides and tinned for easy soldering. Every fifth pad is square for easy alignment of components. Accepts 96 pin DIN-41612 VME connector; holes provided for latches. 38 rows by 62 columns of holes, total board size is 3.9" x 6.3" x 1/16". RoHS compliant.

T-80 0.8" diameter (red) ferrite cores. .486" I.D. Ideal for transformers between 2MHz & 30MHz.

Color coded with white enamel, these toroid cores are commonly used in radio matching circuits, QRP transmitters, and radio frequency amplifiers as well as receivers. Magnetic tolerance: +/-5%. 1MHz - 25MHz. Temperature stability: 30. May not be exactly as pictured. Two types. Part No. Type GF133 T50-7 GF134 T68-7

T-37 ferrite cores - used for filtering, baluns and RF toroidal transformers. Part No. Type Color GF136 T37-2 Red GF137 T37-6 Yellow GF138 T37-10 Black

Medium-size protoboards are 5.16" x 1.90". Forty-five rows of holes arranged so IC's can straddle center of board. Each IC pin has 5 pads for connection to other components. Part No. Type GF146 Phenolic GF147 Fiberglass

4.30" by 5.50" protoboards. 1,900+ holes/pads to accommodate large circuits. Sized for standard, leaded components on 1/10" centers. Components side imprinted w/ink; bright copper accepts solder readily. Part No. Type GF149 Phenolic GF150 Fiberglass

Two-hole balun cores for broadband transformers in transmitters. Part No. Type GF105 BN43-202 GF106 BN43-2402

FR-4 fiberglass, board, solder masked and standard height: Eurocard/VME size. Zigzag circuit pattern, with holes drilled on 0.1" center that are .037" diameter to accommodate all IC’s & square post headers. 38 by 62 holes in 76 separate copper traces. Standard, 1 ounce copper is used. Dimensions: 3.9" wide, 6.3" long and 1/16" thickness. RoHS compliant.

These general purpose protoboards are 1.8" W x 3.6" L and feature drilled copper pads connected in groups of two & three. Accommodates transistors & common passive components. Part No. Type GF114 Phenolic GF115 Fiberglass
