EMC CONNECTRIX DS-24M2 SWITCH

2 x EMC Connectrix DS-24M2 Switches. Part number 118032296. Removed from active service. The EMC Con...
Read More
  • Product SKU: SB109
  • Product Name: EMC CONNECTRIX DS-24M2 SWITCH
  • Manufacturer: EMC
Description:

2 x EMC Connectrix DS-24M2 Switches. Part number 118032296. Removed from active service. The EMC Connectrix DS-24M2 Switch provides full fabric support, true line-speed switching, fibre channel loop support, 8 to 24 port configuration flexibility and modular components for expandibility. The 2 Gb DS-24M2 can participate in a multiple-switch fabric, interconnecting hundreds of Fibre Channel ports. EMC Connectrix Switches are ideal for department or edge environments providing highly available, heterogeneous access to SAN applications, offering first class availability and management features, nondisruptive firmware upgrades, and continuous switch health monitoring.
Specifications:
EMC Connectrix DS-24M2 - switch - 8 ports
Form Factor External
Data Transfer Rate 2.12 Gbps
8 to 24 universal fibre channel ports, available in 8 port increments Ports Qty 8
Data Link Protocol Fibre Channel
Communication Mode Full-duplex
Remote Management Protocol SNMP, HTTP
Cascade max: Up to 16 switches, 3 hops
FC-FLA, FC-GS-2, FC-FG, FC-PH, FC-PH-2, FC-PH-3
Full line-speed switching, 400 MB/sec per port, full duplex
Switch bandwidth: 48 Gb/sec
Fabric Latency: 2 microsecond max across switch
Max frame size: 2112-byte payload
Classes of Service: Class 2, Class 3, Class F (Interswitch Frames)
Port Types: FL_Port, F_Port, E_Port and G_Port. Self discovery based on connection type
Fabric Services: Simple Name Server, Registered State Change Notification (RSCN), Alias Server (Multicast), Zoning
Hot swappable: redundant power supplies, redundant cooling fans, optics
Standard config in EC-1200 cabinet is from 1-12 DS2-24M2 switches. CLARiiON rackmount also available. Desktop configuration - standard. 19 in rack mounting kit available.

  • Product Availability: Available
SKU
SB109

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Thank you Marshall

    Marshall found a replacement part for half the price. Ask them.

    By John Kayne on

  • I got it on time

    Where do these guys get their parts from is a mystery, but they are good.

    By Zack Gibson on

  • No one else had it

    Best Regards from Arizona, you made it happen, i needed this sku.

    By Mick Hall on

Add to Wishlist

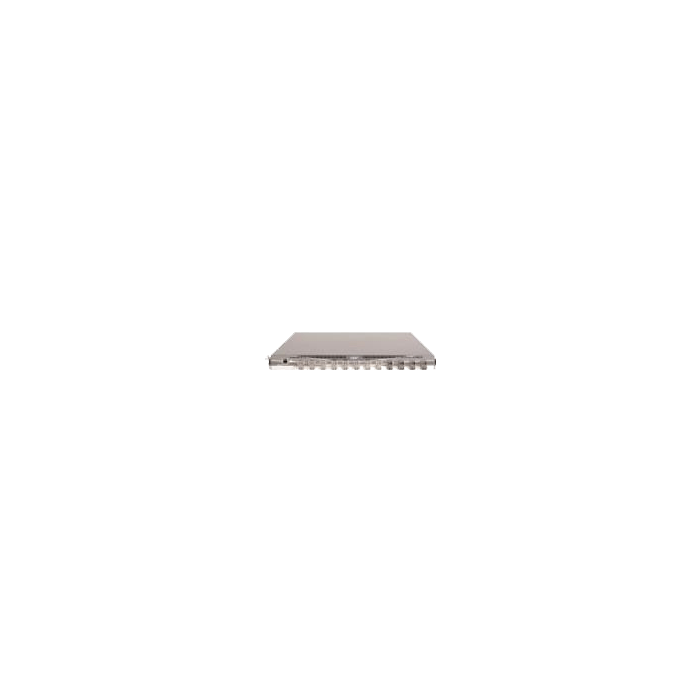

main product photo
