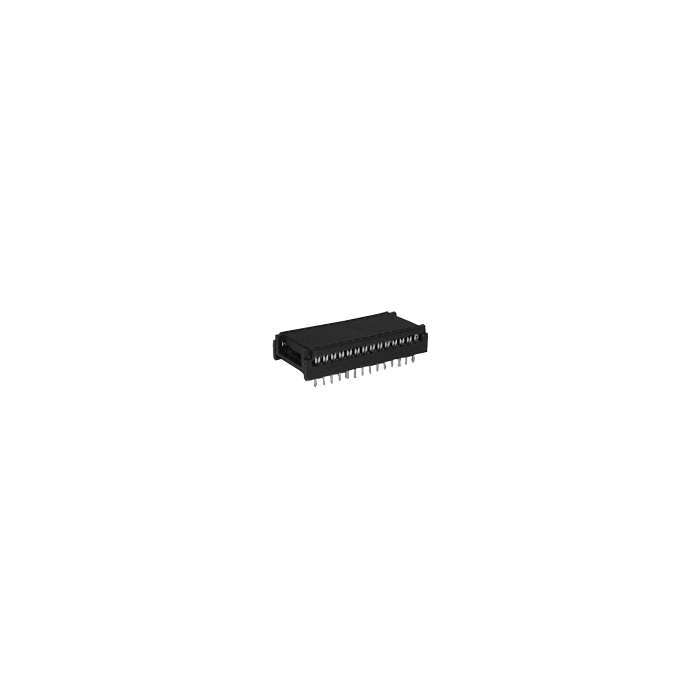

INSULATION DISPLACEMENT DIP CONNECTORS
- Product SKU: GF329
- Product Name: INSULATION DISPLACEMENT DIP CONNECTORS
- Manufacturer: PHILMORE
Fits all standard DIP Sockets or direct soldering to P.C. board. Accepts 28-30 ga. wire, mates with .050 centered round conductor flat wire. .100" contact spacing. Voltage: AC 500V for 1 minute. Contact resistance: 30m ohm max. at DC 100mA, insulator resistance: 1000m ohm min. at DC 500V. Current rating: 1 Amp dielectric withstanding. Contact is phosphor bronze, housing is PBT & 30% Glass Fiber (UL 94V-0). (Dimensions in inches listed under A,B,D & D columns.)
Part No. | Contacts | Dimensions |
---|---|---|
GF330 | 14 | .895 |
GF331 | 16 | .989 |
GF332 | 18 | 1.052 |
GF333 | 20 | 1.170 |
GF334 | 24 | 1.378 |
GF335 | 28 | 1.579 |
GF336 | 40 | 2.178 |
Condition: New
