INSULATION DISPLACEMENT DUAL ROW CONNECTORS - 6 TO 64 POSITION

Easily removable molded cable strain relief is fully interchangeable with competative models. 100...
Read More
  • Product SKU: GF505
  • Product Name: INSULATION DISPLACEMENT DUAL ROW CONNECTORS - 6 TO 64 POSITION
  • Manufacturer: PHILMORE
Description:

Easily removable molded cable strain relief is fully interchangeable with competative models. 100" spacing. Meets Mil-C-83503 specs. Contact resistance: 30m ohm max. at DC 100mA. Insulator resistance: 1000m ohm min. at DC 500V. Voltage: AC 500V for 1 minute, current rating: 1 Amp Dielectric Withstanding. Contacts are phosphor bronze, housing is PBT & 30% Glass Fiber (UL 94V-0). Click "more info" for schematic of the A and B dimensions.

Part No. Position Dim. A Dim. B
GF506 6 .479 .20
GF507 8 .579 .30
GF508 10 .679 .400
GF509 12 .779 .50
GF510 14 .879 .600
GF511 16 .979 .700
GF512 20 1.179 .900
GF513 24 1.379 1.10
GF514 26 1.479 1.20
GF515 30 1.680 1.40
GF516 34 1.879 1.60
GF517 40 2.179 1.90
GF518 50 2.679 2.40
GF519 60 3.179 2.90
GF520 62 3.279 3.0
GF521 64 3.379 3.10


A break-off pin is also offered which can be used to Key the connector so that it may be connected only with the correct orientation. Pin is inserted into a socket and a corresponding pin is removed from the male connector. Ask for GF522. Condition: New

  • Product Availability: Available
SKU
GF505

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Good team

    Satisfied even with their no refund policy.

    By Peter Miller on

  • Proactive Team

    Had to use my warranty and had no issues with the new shipment, thanks.

    By Zack Hicks on

  • Amazing inventory

    I found a cheaper price on ebay but the seller had no history. Good thing i bought from you.

    By Luisa Moore on

Add to Wishlist

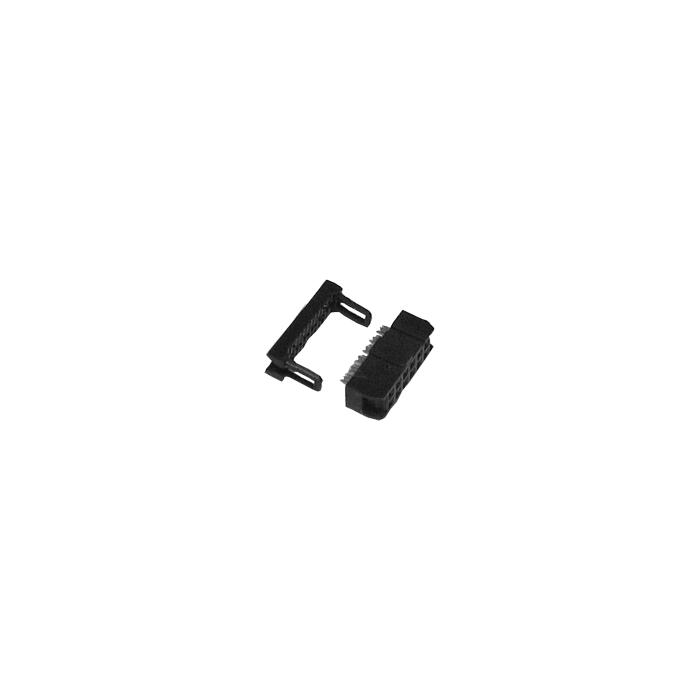

main product photo
