LED LIGHTED ROCKER SWITCHES
- Product SKU: GD404
- Product Name: LED LIGHTED ROCKER SWITCHES
- Manufacturer: -ASSORTED

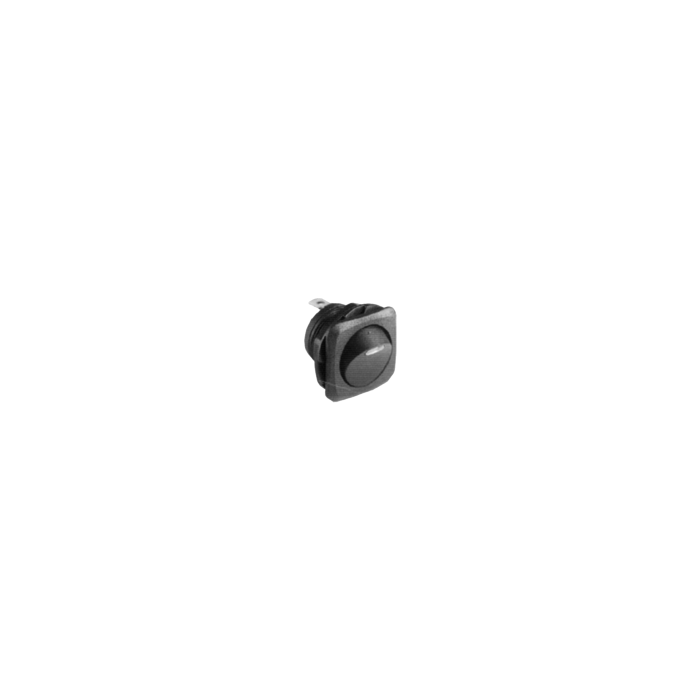

Lighted, square bezel nut mounted round rocker switches. SPST, on-off action, DC LED voltage is 2V @ 20mA - can be used on other voltages as well*- . Panel cut-out: 20.2mm (.79"), maximum panel thickness 6.0mm. Additional Specs:
- Current rating: 6A 250VAC, 10A 125VAC
- Initial contact resistance: <50Meg Ohms @ 12VDC
- Insulation resistance: >100Meg Ohms
- Dielectric strength (open contacts): >1500V for 1 minute
- Contact material: silver plated brass
- Terminal material: copper alloy
- Body material: nylon (UL 94V-2)
- Actuator & bezel: nylon (UL 94V-2)
- Terminal type: .187" quick connect
Part No. | Lamp color |
---|---|
GD405 | Red |
GD406 | Amber |
TS290 | Green |
GD408 | Blue |
*Resistor needed for other voltages. Condition: New
