MABUCHI RS-555PH-3255 HIGH TORQUE 3950 RPM 12VDC MOTOR/GENERATOR - 5 POLE CONSTRUCTION FOR HIGHER TORQUE - LOWER POWER

MABUCHI model RS-555PH-3255 (RS555PH3255). What a find.... Originally designed to be installed in po...
Read More
  • Product SKU: MD522
  • Product Name: MABUCHI RS-555PH-3255 HIGH TORQUE 3950 RPM 12VDC MOTOR/GENERATOR - 5 POLE CONSTRUCTION FOR HIGHER TORQUE - LOWER POWER
  • Manufacturer: MABUCHI
Description:

MABUCHI model RS-555PH-3255 (RS555PH3255). What a find.... Originally designed to be installed in portable drills and printers. (Also works as a fine generator) This model features improved design to reduce external noise levels. Has "wrap around" magnetic shield. High torque 380.3 gm-cm with a stall-torque figure of 1360 gm-cm. An excellent find for the small or medium sized OEM who requires modest quantities of this quality product but cannot satisfy the manufacturer's demand for large quantity purchases. Hundreds of application in Robotics, the RC field etc. (shaft is 1/4 flat - stainless steel 1/8" dia). No load speed is 5500RPM - excellent for "gearing down" to provide ultra high torque for larger projects. 1-7/16" dia x 2-5/8" long. Flatted shaft is 1/2" long. 3/16" push on terminals. Check the spec sheet by clicking the "more info" icon. For a larger photo, click on the photo above. This unit features 5 pole construction for higher torque and power efficiency, anisotropic magnets, and coil specs of 55 turns of 32mm wire. We have tested this motor on one alkaline pencell and find that it will deliver useable torque at reduced RPM.

  • Product Availability: Available
SKU
MD522

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Everything in order

    Satisfied even with their no refund policy.

    By Peter Kayne on

  • Kind people

    They diserve a nice review, i got my order ontime and they followed it until the end.

    By Zack Sutton on

  • Amazing inventory

    Best Regards from Arizona, you made it happen, i needed this sku.

    By Jamie Graham on

Add to Wishlist

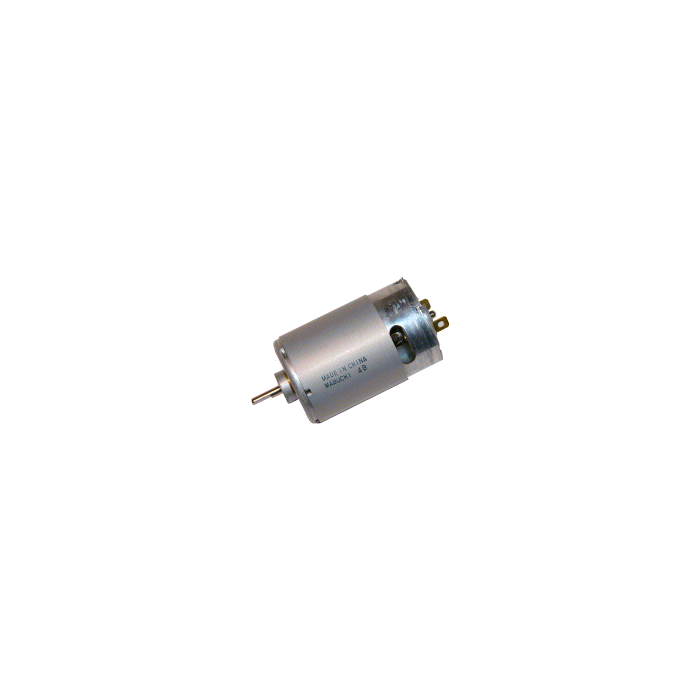

main product photo

How can I help you?

Hi, I'm Nathan Rabin. Click on Live Chat, pick up the phone, or use one of the other platforms here to get in touch with me about this product.

Toll Free:866-491-2651

MABUCHI model RS-555PH-3255 (RS555PH3255). What a find.... Originally designed to be installed in portable drills and printers. (Also works as a fine generator) This model features improved design to reduce external noise levels. Has "wrap around" magnetic shield. High torque 380.3 gm-cm with a stall-torque figure of 1360 gm-cm. An excellent find for the small or medium sized OEM who requires modest quantities of this quality product but cannot satisfy the manufacturer's demand for large quantity purchases. Hundreds of application in Robotics, the RC field etc. (shaft is 1/4 flat - stainless steel 1/8" dia). No load speed is 5500RPM - excellent for "gearing down" to provide ultra high torque for larger projects. 1-7/16" dia x 2-5/8" long. Flatted shaft is 1/2" long. 3/16" push on terminals. Check the spec sheet by clicking the "more info" icon. For a larger photo, click on the photo above. This unit features 5 pole construction for higher torque and power efficiency, anisotropic magnets, and coil specs of 55 turns of 32mm wire. We have tested this motor on one alkaline pencell and find that it will deliver useable torque at reduced RPM.
  • Product SKU: MD522
  • Product Name: MABUCHI RS-555PH-3255 HIGH TORQUE 3950 RPM 12VDC MOTOR/GENERATOR - 5 POLE CONSTRUCTION FOR HIGHER TORQUE - LOWER POWER
  • Manufacturer: MABUCHI
Description:

MABUCHI model RS-555PH-3255 (RS555PH3255). What a find.... Originally designed to be installed in portable drills and printers. (Also works as a fine generator) This model features improved design to reduce external noise levels. Has "wrap around" magnetic shield. High torque 380.3 gm-cm with a stall-torque figure of 1360 gm-cm. An excellent find for the small or medium sized OEM who requires modest quantities of this quality product but cannot satisfy the manufacturer's demand for large quantity purchases. Hundreds of application in Robotics, the RC field etc. (shaft is 1/4 flat - stainless steel 1/8" dia). No load speed is 5500RPM - excellent for "gearing down" to provide ultra high torque for larger projects. 1-7/16" dia x 2-5/8" long. Flatted shaft is 1/2" long. 3/16" push on terminals. Check the spec sheet by clicking the "more info" icon. For a larger photo, click on the photo above. This unit features 5 pole construction for higher torque and power efficiency, anisotropic magnets, and coil specs of 55 turns of 32mm wire. We have tested this motor on one alkaline pencell and find that it will deliver useable torque at reduced RPM.
