MERKLE-KORFF GEARMOTOR OPERATES AT 9VDC
- Product SKU: GF955
- Product Name: MERKLE-KORFF GEARMOTOR OPERATES AT 9VDC
- Manufacturer: MERKLE-KORFF

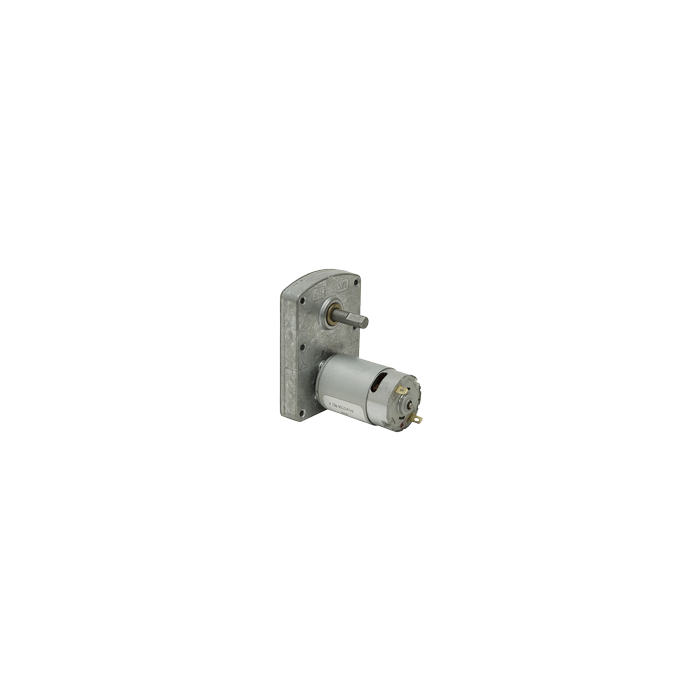

Parallel shaft gearmotor by Merkle-Korff. 9VDC, 0.23 amps @ no load, 62 RPM. Reversible rotation, intermittent duty and gear ratio of 46.1:1. Die-cast gear housing. Dimensions: 3-1/4" x 2-1/2" x 3-5/8" with 5/16" dia. x 7/8" w/flat & snap-ring groove. Mount: Six thru-holes on 2-1/16" x 1-23/32" centers or 2-1/16" x 2-29/32" centers. Holes are for #8 thread forming screws. Condition: New
- Product Availability: Available
