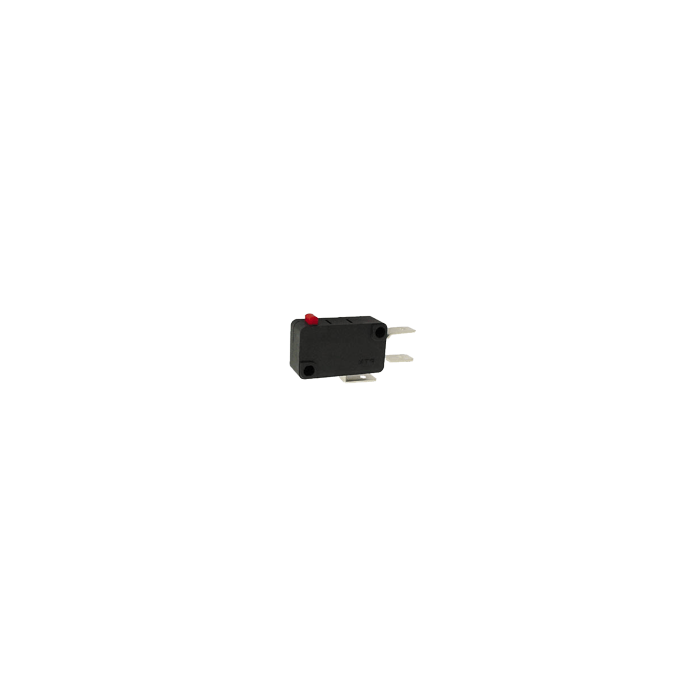

MICROSWITCH WITH MINI PUSH ACTUATOR
- Product SKU: GD488
- Product Name: MICROSWITCH WITH MINI PUSH ACTUATOR
- Manufacturer: VELLEMAN
Microswitch - features mini push actuator:
* operating force: 60g
* contact resistance: initially max. 15mohm
* insulation resistance: min. 100Mohm (at 500V DC)
* dielectric strength: 1000V AC for 1 minute
* mechanical life: min. 1000000 operations
* electrical life: min. 100000 operations (full load)
* dimensions: 0.63" x 1.09" x 0.41"
* ratings: 12A / 125V AC, 6A / 250V AC
* return force: 7g
Condition: New
- Product Availability: Available
