MINIATURE SEALED IP67 LED PUSH-BUTTON SWITCHES
- Product SKU: GE006
- Product Name: MINIATURE SEALED IP67 LED PUSH-BUTTON SWITCHES
- Manufacturer: PHILMORE
Fully-shielded miniature push button switches feature complete IP67 protection, the top rating classified for the level of protection electrical appliances provide against the intrusion of objects, including dust and liquids. These are SPST with momentary (ON) - OFF action, with LED in center of actuator button. RoHS compliant. Electrical & general specs:
- Max. current / voltage rating w/resistive load: 400mA 32V AC-100mA 50V DC-125mA 125VAC.
- Viewing angle of LED: 35º
- Case: Thermoplastic UV94-VO
- Contacts: Silver, gold plated
- Terminal seals: Epoxy

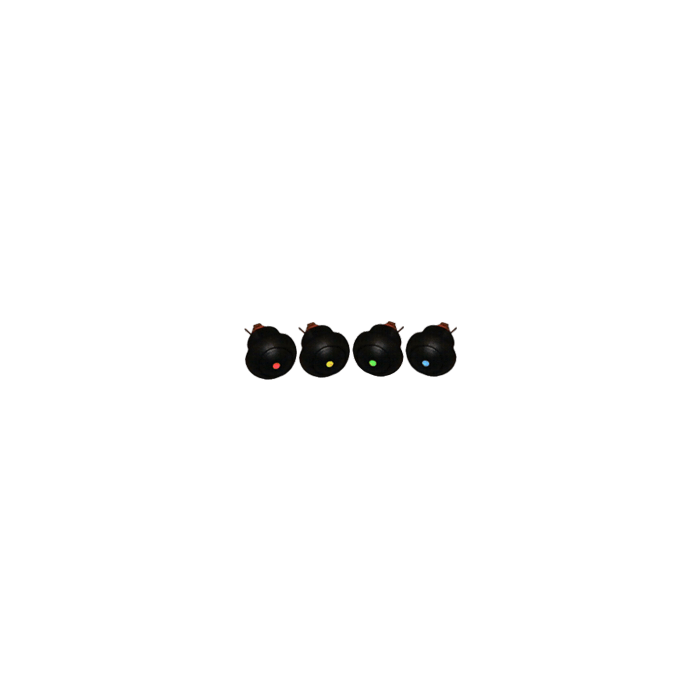

LED available in four colors.
Part No. | LED color | Vf Typ. | Vf Max. |
---|---|---|---|
GE007 | Red | 2.1 | 2.6 |
GE008 | Yellow | 2.1 | 2.6 |
GE009 | Green | 2.0 | 2.6 |
GE010 | Blue | 2.8 | 3.2 |
Condition: New
