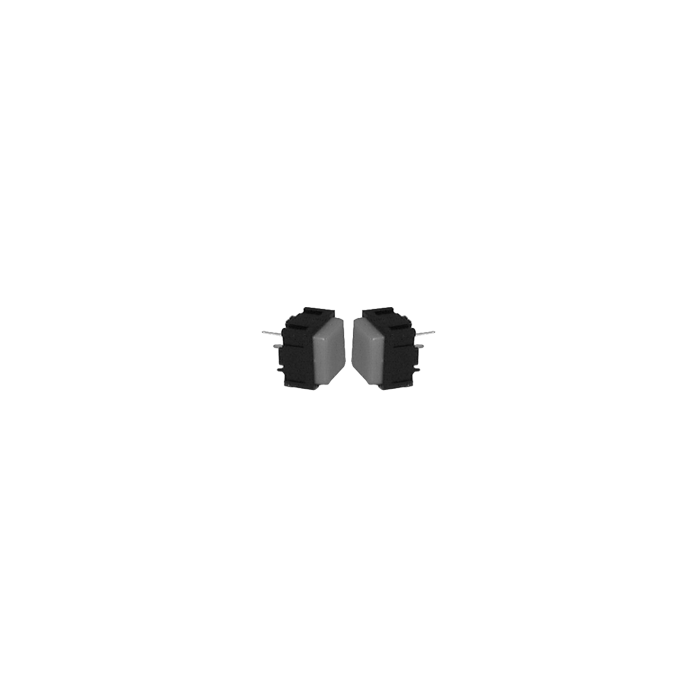

MOMENTARY SPST PRINTED CIRCUIT PUSH-BUTTON SWITCH
- Product SKU: GG390
- Product Name: MOMENTARY SPST PRINTED CIRCUIT PUSH-BUTTON SWITCH
- Manufacturer: PHILMORE
Printed circui push-button switches in three colors. SPST, momentary OFF - (ON). 24mA @ 50 VDC. Contact Resistance: 10m max @ 2-4VDC, 100mA. Dielectric strength: >1,000V rms @ sea level. Insulation resistance: minimum of 1,000 megohms. Operating force:120+/-50 gf. One million cycles typical electric life. Cap: ABS or polycarbonate, Housing: 6/6 Nylon. Dome contact: gold over stainless. Terminals and contacts: Silver plated over copper alloy. Click "more info" for diagram.
Part No. | Color |
---|---|
GG391 | Red |
GG392 | White |
GG393 | Black |
Condition: New
- Product Availability: Available
