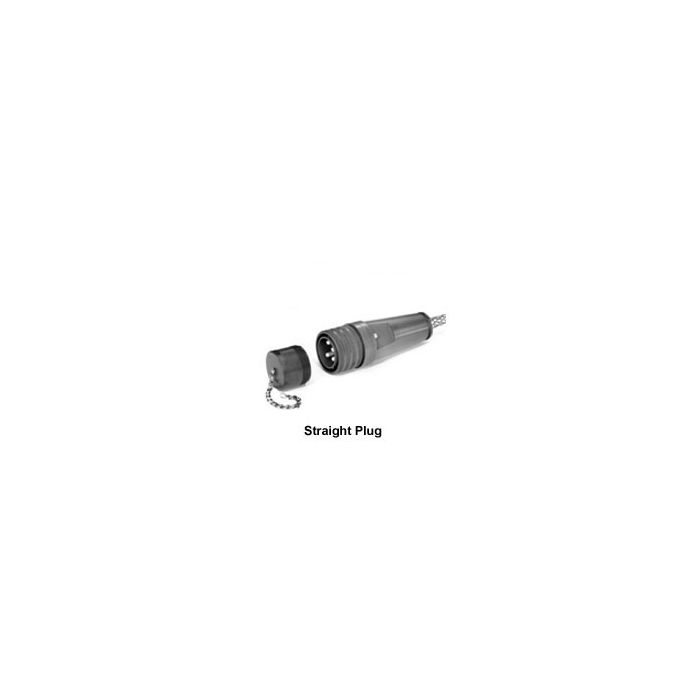

MS90556C32412P Mil-Spec Straight Plug connector

MS90556C32412P Mil-Spec Straight Plug
  • Product SKU: Mil-spec MS90556C32412P
  • Product Name: MS90556C32412P Mil-Spec Straight Plug connector
Description:

MS90556C32412P Description MS90556 Straight Plug The MS90556 cable plug mates with MIL-C-22992 receptacles. It features pin contacts with an integrated backshell and cable grip for environmental protection and strain relief. A protective cover is also included to ensure high reliability in harsh environments. C - Conductive Olive Drab Cadmium - For AC Circuits Conductive olive drab cadmium finish for AC circuits. Finish has salt spray rating of 500 hours. Size 32 - 60 Amps MIL-DTL-22992 Class L connector shell size is directly related to current carrying capability. This connector is rated for 60 amps. Key Position 4 For AC applications, 1 Phase, 2 Wire, 120 VAC or AC applications, 1 Phase, 3 Wire, 120/240 VAC or AC applications, 3 Phase, 4 Wire, 120/208 VAC Contact Arrangement 12 Three Phase AC, 4 Wire, Grounding. Pin Contacts Pin contacts (Equipment side) N Rotation Alternate insert rotations in MIL-C-22992 Class L connectors are used to prevent cross-mating of connectors carrying incompatible frequencies, protecting equipment and personnel. The standard position is N (normal) and is omitted from the part number. Alternate rotations of W, X, Y, and Z are

  • Product Availability: Available
SKU
Mil-spec MS90556C32412P

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Nice people

    I was happy to know there was a specialist standing by to process my request.

    By John Miller on

  • Good to know you

    They diserve a nice review, i got my order ontime and they followed it until the end.

    By Robert Gibson on

  • They know their stuff

    Surplustraders and the people behind it is what really makes the industry go forward..

    By Jamie Hall on

Add to Wishlist
main product photo

How can I help you?

Hi, I'm Marshall Duskes. Click on , pick up the phone, or use one of the other platforms here to get in touch with me about this product.

Toll Free:866-266-7638

International:514-619-6981

MS90556C32412P Description MS90556 Straight Plug The MS90556 cable plug mates with MIL-C-22992 receptacles. It features pin contacts with an integrated backshell and cable grip for environmental protection and strain relief. A protective cover is also included to ensure high reliability in harsh environments. C - Conductive Olive Drab Cadmium - For AC Circuits Conductive olive drab cadmium finish for AC circuits. Finish has salt spray rating of 500 hours. Size 32 - 60 Amps MIL-DTL-22992 Class L connector shell size is directly related to current carrying capability. This connector is rated for 60 amps. Key Position 4 For AC applications, 1 Phase, 2 Wire, 120 VAC or AC applications, 1 Phase, 3 Wire, 120/240 VAC or AC applications, 3 Phase, 4 Wire, 120/208 VAC Contact Arrangement 12 Three Phase AC, 4 Wire, Grounding. Pin Contacts Pin contacts (Equipment side) N Rotation Alternate insert rotations in MIL-C-22992 Class L connectors are used to prevent cross-mating of connectors carrying incompatible frequencies, protecting equipment and personnel. The standard position is N (normal) and is omitted from the part number. Alternate rotations of W, X, Y, and Z are
  • Product SKU: Mil-spec MS90556C32412P
  • Product Name: MS90556C32412P Mil-Spec Straight Plug connector
Description:

MS90556C32412P Description MS90556 Straight Plug The MS90556 cable plug mates with MIL-C-22992 receptacles. It features pin contacts with an integrated backshell and cable grip for environmental protection and strain relief. A protective cover is also included to ensure high reliability in harsh environments. C - Conductive Olive Drab Cadmium - For AC Circuits Conductive olive drab cadmium finish for AC circuits. Finish has salt spray rating of 500 hours. Size 32 - 60 Amps MIL-DTL-22992 Class L connector shell size is directly related to current carrying capability. This connector is rated for 60 amps. Key Position 4 For AC applications, 1 Phase, 2 Wire, 120 VAC or AC applications, 1 Phase, 3 Wire, 120/240 VAC or AC applications, 3 Phase, 4 Wire, 120/208 VAC Contact Arrangement 12 Three Phase AC, 4 Wire, Grounding. Pin Contacts Pin contacts (Equipment side) N Rotation Alternate insert rotations in MIL-C-22992 Class L connectors are used to prevent cross-mating of connectors carrying incompatible frequencies, protecting equipment and personnel. The standard position is N (normal) and is omitted from the part number. Alternate rotations of W, X, Y, and Z are
