OPEN FRAME ROTARY SWITCHES
- Product SKU: GD728
- Product Name: OPEN FRAME ROTARY SWITCHES
- Manufacturer: PHILMORE

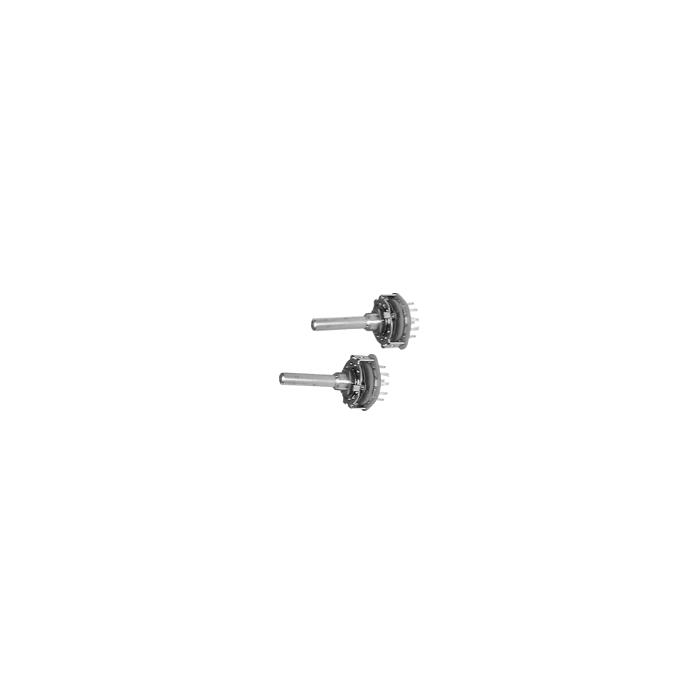

Open frame rotary switches. These switches have a current rating of 0.3A @ 125V AC and initial contact resistance of 20 Meg ohm (MAX.) Insulation resistance is DC500V-100 Meg ohm (min.) and withstand voltage is AC500V-1 minute. Rotation torque: 1.0 +/- 0.5 kg/om. Shaft: 38mm length, 6.35mm O.D. Terminal type: solder.
Part No. | Type | No. Pole | No. Position |
---|---|---|---|
GD729 | Shortening | 1 | 12 |
GD730 | Shortening | 2 | 4 |
GD731 | Non-shortening | 2 | 5 |
GD732 | Shortening | 2 | 6 |
Condition: New
- Product Availability: Available
