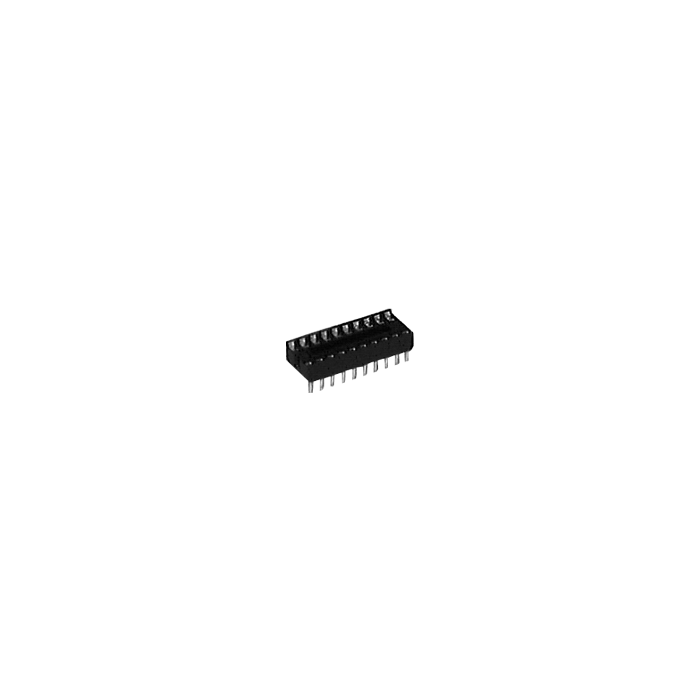

PC BOARD-MOUNT DIP IC SOCKETS
- Product SKU: GF317
- Product Name: PC BOARD-MOUNT DIP IC SOCKETS
- Manufacturer: PHILMORE
Industry standard spacing, tin-plated contact. Voltage: AC 500V for 1 minute; Current rating: 1 Amp dielectric withstanding. Contact resistance: 30m ohm max. at DC 100mA; insulator resistance: 1000m ohm min. at DC 500V. Contact - phosphor bronze; housing - PBT & 30% Glass Fiber (UL 94V-0). 8 to 40 contact available. (Dimensions in inches listed under A,B,C & D columns.)
Part No. | Contacts | A | B | C | D |
---|---|---|---|---|---|
GF318 | 8 | .400 | .300 | .400 | .300 |
GF319 | 14 | .700 | .600 | .400 | .300 |
GF320 | 16 | .800 | .700 | .400 | .300 |
GF321 | 18 | .900 | .800 | .400 | .300 |
GF322 | 20 | 1.000 | .900 | .400 | .300 |
GF323 | 24 | 1.200 | 1.100 | .700 | .600 |
GF324 | 28 | 1.400 | 1.300 | .700 | .600 |
GF325 | 40 | 2.000 | 1.900 | .700 | .600 |
- Product Availability: Available
