Power Equipment

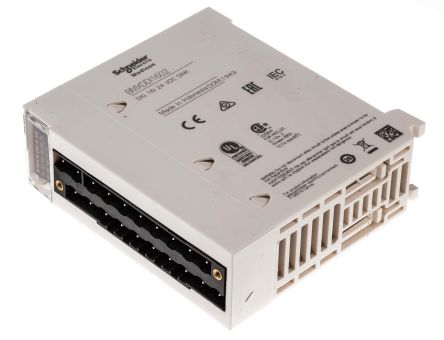

BMXDDI1602 Digital Input Module

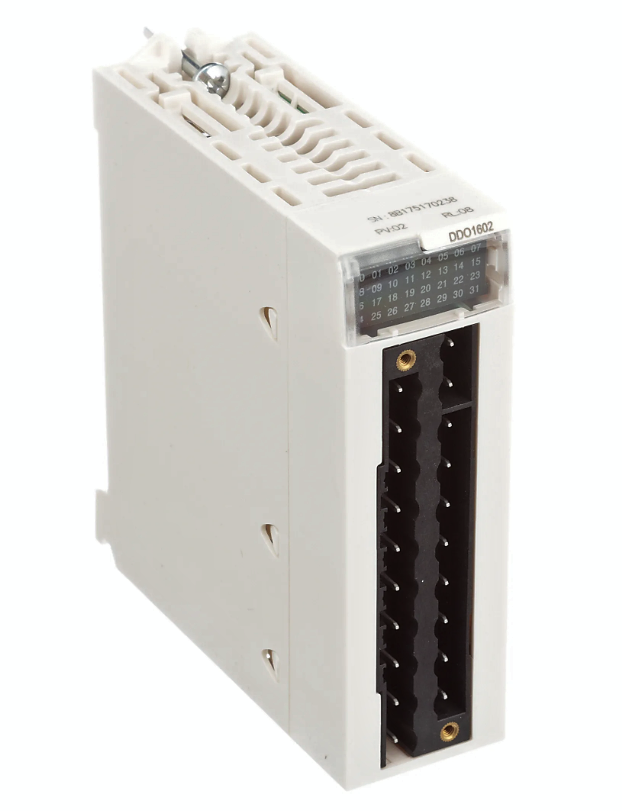

Square D Modicon M340 PLC Output Digital Module, Discrete, 16 Output, 24 VDC, 5 mA, 0 to 60 deg C

Unit: Aircraft Ground Power Unit Model: JetEx-4D Manufacturer: Hobart Condition: Operational or refurbished AC Hobart Alternator Output, 28.5 VDC, 600 amp continuous Peak Start Current capacity 2000 amps Adjustable soft start current limiter 0 to 2000 amps. Engine: Perkins 4.236 Diesel, Output cable and aircraft plug included Trailer mounted with tow bar, pneumatic tires Manually activated parking brake Dimensions: (on trailer) L 75.5” x W 58” x H 63.5” Weight: 2,410 lbs. Option: Refurbished Painted one colour Load bank tested, certification of test and performance to manufacturer’s specification provided with unit Operational, maintenance, and parts manuals

Unit: Aircraft Ground Power Unit DC Model: JetEx-4 Manufacturer: Hobart Condition: Operational or refurbished AC Hobart generator, rectified output 28.5 volt DC, 550 amp continuous “Soft start”; self-adjusting to demand, 0 to 1,600 amps. Engine: Ford, 2.4 liter, 4 cyl., gasoline Output cable and aircraft plug included Trailer mounted with tow bar, pneumatic tires Manually activated parking brake Option: Refurbished Painted one colour Load bank tested, certification of test and performance to manufacturer’s specification provided with unit Operational, maintenance, and parts manuals

Aircraft Ground Power Unit Model: JetEx-3 Manufacturer: Hobart Condition: Operational or refurbished 28.5 volt DC ground power unit Generator, 550 amps continuous “Soft start”; self-adjusting to demand, 0 to 1,500 amps. Engine: Ford 300 CID, 6 cylinder gasoline Trailer mounted with tow bar 30 foot cable and aircraft plug Manually activated parking brake Option: Refurbished Painted one colour Load bank tested, certification of test and performance to manufacturer’s specification provided with unit Operational, maintenance, and parts manuals

Jetall GPU; Model JTL28D2 The advanced technology behind this GPU line is unique, yet simple. At the core of the Jetall GPU is a basic processor, which acts as the main nerve hub for electrical and moving parts in the unit. The processor constantly performs real-time checks of the GPU state and condition, engine, generator, electrical flow, fluids status, circuits protection and maintenance issues. As and when needed, these notifications will be visible on the main control panel of the GPU. The Perkins engines that we use are the latest in engine technology available at time of assembly. These engines are so efficient that they will not only provide full rated power at lower RPM than other similar units, they also hold some of the lowest carbon emissions ratings in the market. The combination of our collective efforts prices our product 20-25% below the prices of any similar product. Alternator: Mecc Alte, 28 Kw, brushless. - Output: 900 amp continuous, 2000 amp Peak Starting Current - Current Limiting: adjustable from 300 to 2000 amps with - Line Drop compensation voltage adjustment - Engine: Perkins 1104C Series, 4 cyl. diesel - Fuel tank: 10 hour run time - Manually activated parking brake - Paint: Baked powder coating, one colour - Operational, maintenance and parts manual - Dimensions: L 103”; W 63”; H 59”; weight 2,850 lbs. Options Available: >> DC Output Cable, 30’, 4/0 AWG with Plug - Addtl. costs for add-on >> Forklift Pockets - Addtl. costs for add-on >> Low Fuel Warning, audible - Addtl. costs for add-on >> High coolant temp. shutdown - Included >> Low Coolant Warning - Addtl. costs for add-on >> Cold weather Kit - Addtl. costs for add-on >> Tow and Running Lights Kit - Addtl. costs for add-on

Jetall GPU; Model JTL90D4TR The advanced technology behind this GPU line is unique. At the core of the Jetall GPU is a simple processor, which acts as the main nerve hub for electrical and moving parts in the unit. The processor constantly performs real-time checks of the GPU state and condition, engine, generator, electricity flow, fluids status, protection circuits and maintenance issues. As and when needed, these notifications will be visible on the main control panel of the GPU. The engines that we use are the most reliable in engine technology available that comply with Tier 4 F legislation. These engines are solidly proven a reliable power source for GPU, providing full rated power at 1846 RPM, slower and with lower noise than other units with similar output power. The combination of our engine / alternator operating at 1846 RPM makes our product price 30-40% below the prices of any similar product. - Alternator: Jetall 90 KVA, brushless, 400 Hz. - Engine: Remanufactured DD741 Tier 4 compliant. - Standard Control and Aircraft Protection System - Trailer mounted with 5th wheel steering, tow bar - Parking brake: Towbar lever activated - Manuals included (Operation, Maintenance, Parts) - Finish: Powder coat, one colour Options Available: >>28.5 VDC Rectifier; output 800 amp continuous and 2,200 amp Peak Starting current - Included >> DC Output Cable, 30’, 4/AWG and Plug - Included >> AC Output Cable, 30’, 2/AWG and Plug - Included >> Forklift Pockets - Addtl. costs for add-on >> Low Fuel Warning, audible. - Addtl. costs for add-on >> Low Coolant Warning - Addtl. costs for add-on >> Cold weather Kit - Addtl. costs for add-on >> Tow and Running Lights Kit - Addtl. costs for add-on

Unit: Aircraft Ground Power Unit Model: 11-6608-1107 Manufacturer: Tronair Condition: 2007 Refurbished AC Alternator: 28.5 VDC, 500 amp continuous Engine: Teledyne-Continental, 3 cyl. Diesel, Jet A fuel Batteries: 12-volt, 625 amp/hour each, 4 on each side the unit. Soft start current provided. Peak Starting Current Capacity 2000 amps Output cable and aircraft plug included Trailer mounted with tow bar, pneumatic tires Manually activated parking brake Dimensions: L 104”; W 43”; H 56” Weight: 2,700 lbs. Options: Forklift Pockets Low Fuel Warning Low Coolant Warning High coolant temp. shutdown Tow and Running Lights Kit Cold weather kit AC Outlet 110 volt, 60Hz, 20 amps Cable/Plug, 9.2 Meter (30’), 4/0 AWG Refurbished to NEA standards Painted one colour Load bank tested, certification of test and performance to manufacturer’s specification, provided with the unit. Operational, maintenance and parts manuals

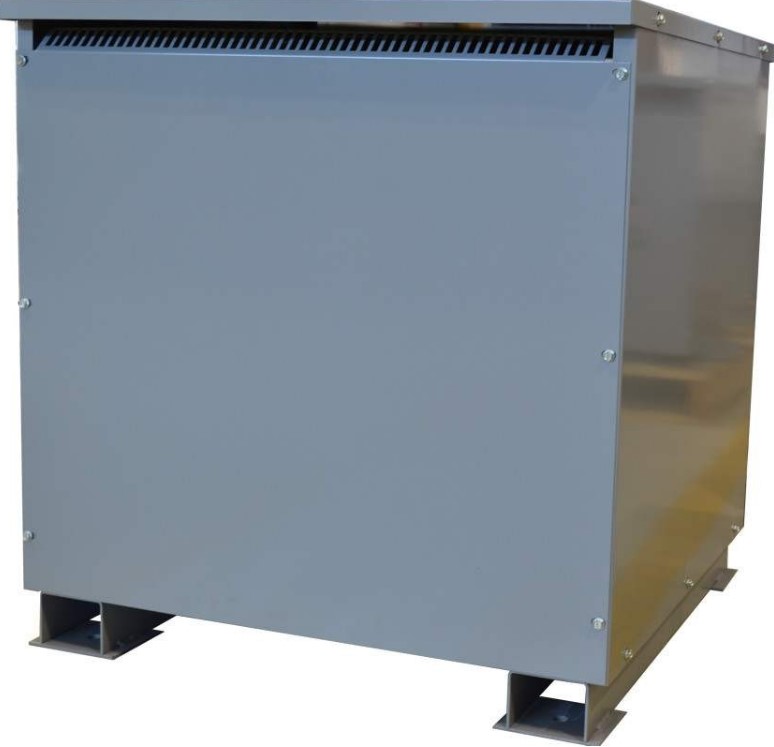

Transformer for converting 480 volt input to 600 voltREX P/N: BA75H-Q/Z3 or equivalent

400A 65KA BREAKER FRAME

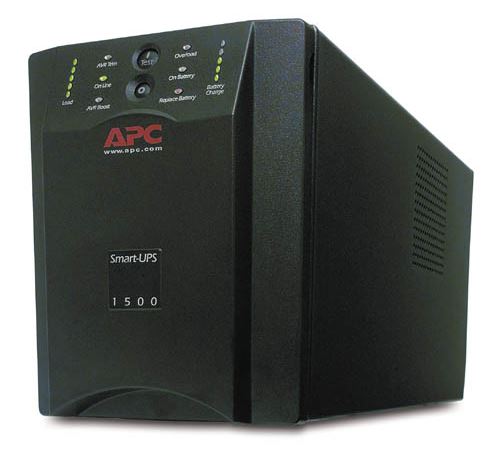

REFURBISHED APC SMART-UPS

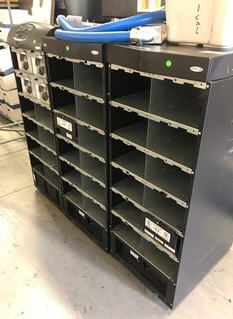

Liebert Nfinity External Battery Enclosure - N900E1200000

Check our list of LCD's such as Hitachi, Samsung, LG, Sharp, Innolux, Auo, NLT and much more....

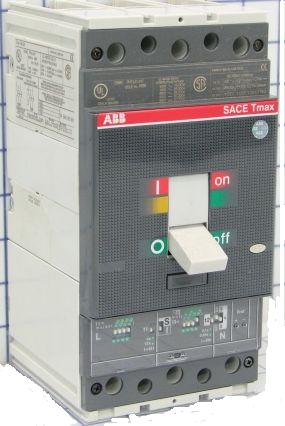

TMAx series 3-P, 200A/600VAC, 25KAIC@480VAC, Less Terminal Lugs, Fixed Thermal-Magnetic Trip.

TMAX series 3-P, 300A/600V 25KAIC@480V, FIXED THERMAL MAGNETIC LESS TERMINAL LUGS .

Type K Single Pole 25kA - System Pro M Compact Thermal magnetic trip device and 25kA at 480V AC interrupt current rating.

T4 frame, normal interrupting, 3 Pole, 250 A, Thermal Magnetic Trip Unit.

Multi-function LCD status and control console Power saving function Master/control power-saving green feature Output power capacity: 350va/865w Input: Nominal Input Voltage: 120V
