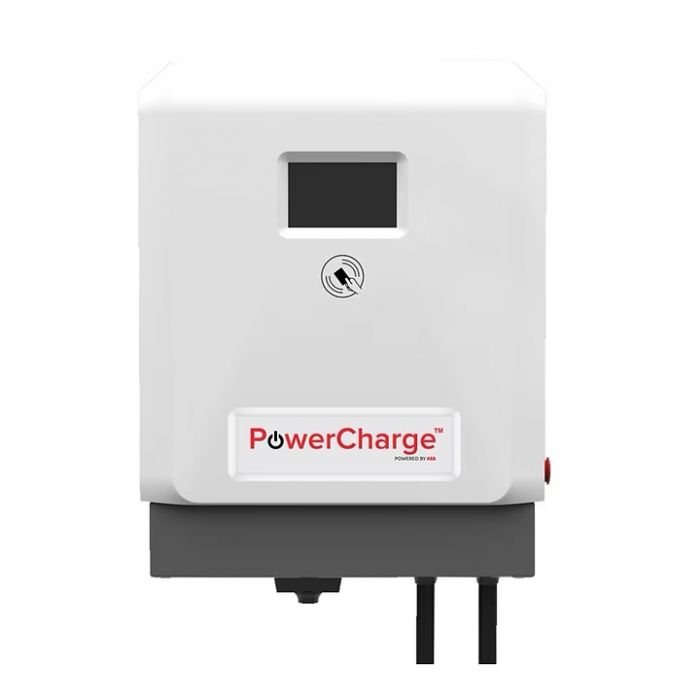

PowerCharge ThunderLite Series DC Fast Charger

Maximum Output Power: 90 kW, 120 kW or 60 kW x2, 180 kW or 90 kW x2 AC Input Voltage: 480Y / 277 VAC +/- 10% (60 Hz) AC Input Connection: 3-phase: L1, L2, L3, GND (no neutral) Recommended upstream circuit breaker(s): 150 A, 200 A, 300 A DC output voltage: CCS-1: 150 - 920 VDC; CHAdeMO: 150 - 500 VDC DC output current: CCS-1: 400 A / CHAdeMO: 200 A, CCS1: 400 A, CHAdeMO: 200 A - Optional CCS1 300 A (nominal) and 400 A (peak) high current cable(s) Charging protocols: CCS1 and CHAdeMO 1.2 User interface: 7” high brightness full color touchscreen display Network connection: GSM/3G/4G modem; 10/100 Base-T Ethernet Protection: IP54, NEMA 3R; indoor and outdoor rated Charge cable: 6 m (19.6 ft) Dimensions (H x W x D): 1900 x 565 x 880 m / 74.8 x 22.2 x 34.6 in The PowerCharge ThunderLite Series DC Fast Charger is a high-speed charging solution for electric vehicles. It is designed to provide fast charging capabilities for both private and public charging stations. Key features of the PowerCharge ThunderLite Series DC Fast Charger include: 1. High charging speed: The ThunderLite Series charger is capable of providing up to 50 kW of DC power, allowing for rapid charging of electric vehicles. This makes it ideal for both short and long distance travel, as it can quickly replenish the vehicle's battery. 2. Compact and lightweight design: The ThunderLite Series charger is designed to be compact and lightweight, making it easy to install and transport. This makes it suitable for a wide range of applications, including private homes, commercial buildings, and public charging stations. 3. Automatic safety features: The charger is equipped with advanced safety features, such as overcurrent protection, overvoltage protection, and short circuit protection. This ensures the safety of the charging process and protects both the vehicle and the charging station from any potential hazards. 4. User-friendly interface: The charger features a user-friendly interface, with a touchscreen display that provides real-time charging information, such as battery status, charging time, and charging speed. This allows users to easily monitor the charging progress and make any necessary adjustments. 5. Multiple connectivity options: The ThunderLite Series charger supports multiple connectivity options, including RFID card authentication, smartphone app integration, and remote monitoring capabilities. This allows for easy user access and control, as well as remote monitoring and management of the charging stations. Overall, the PowerCharge ThunderLite Series DC Fast Charger is a reliable and efficient charging solution for electric vehicles, offering fast charging speeds, safety features, and user-friendly interface. It is designed to meet the growing demand for fast charging infrastructure and facilitate the widespread adoption of electric vehicles.
