SEALED ILLUMINATED PUSH BUTTON SWITCHES
- Product SKU: GD261
- Product Name: SEALED ILLUMINATED PUSH BUTTON SWITCHES
- Manufacturer: -ASSORTED

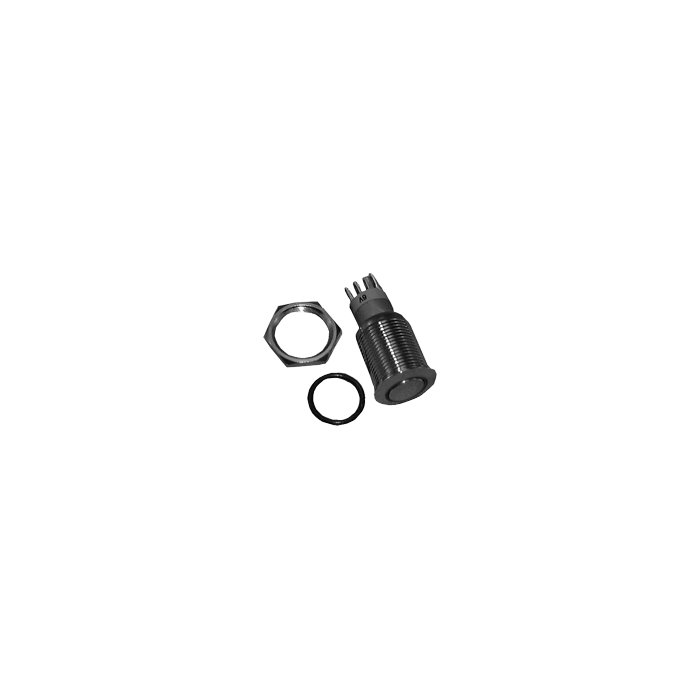

Tamper-proof push button switch mounts in 16.0 mm (5/8") hole in panel up to .50" thick. Bushing and button made from nickel-plated brass. Features IP67 protection and illuminated ring around actuator. Can be used in both illuminated & non-illuminated application (12V DC LED.) RoHS compliant. Specs:
- Contact rating: 3A @ 250V AC, 2V @ 24V DC
- Electrical life: 50,000 cycles
- Contact resistance: 50m-ohms max (initial)
- Insulation resistance: 1,000M-ohms min @ 500V DC
- Dielectric strength: 2,000V RMS 50 ~ +70º C
- Operating temp: -20º ~ +70º C
- Switching circuit: ON - ON (latching)
- Torque: 5 ~ 14Nm max. applied to nut
- Operating force: 5.5N max.
Part# | Type | Action | Actuator |
---|---|---|---|
GD262 | SPDT | (ON) or (OFF) | Brass w/red LED |
GD263 | SPDT | (ON) or (OFF) | Brass w/green LED |
GD264 | SPDT | (ON) or (OFF) | Brass w/blue LED |
GD265 | SPDT | Push ON/Push OFF | Brass w/red LED |
GD266 | SPDT | Push ON/Push OFF | Brass w/green LED |
GD267 | SPDT | Push ON/Push OFF | Brass w/blue LED |
Condition: New
- Product Availability: Available
