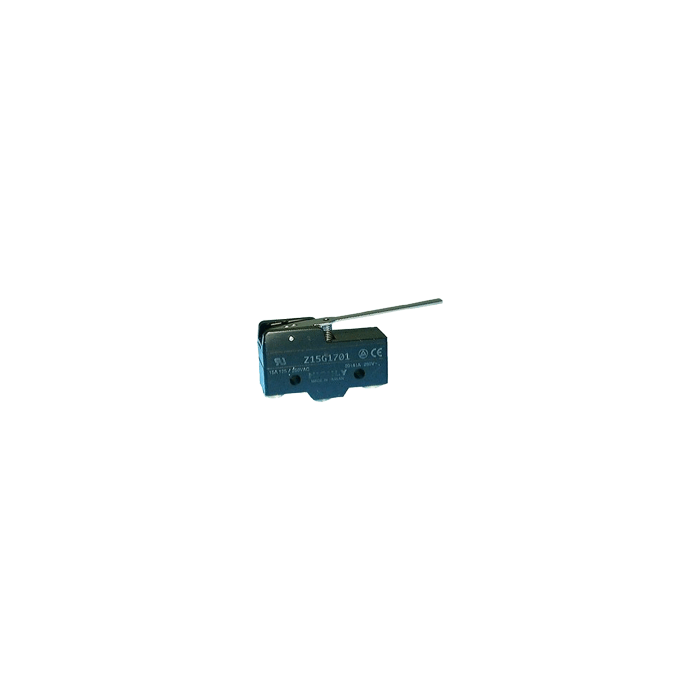

SNAP-ACTION SPDT SWITCH WITH LONG LEVER
- Product SKU: GG465
- Product Name: SNAP-ACTION SPDT SWITCH WITH LONG LEVER
- Manufacturer: PHILMORE
Long lever heavy-duty snap action momentary microswitch with long lever. SPDT. UL. Current Rating: 15A@ 125/250V AC; 1/2A@ 125V DC, 1/4 HP @ 250V DC; and 1/8 HP @ 125V AC, 1/4 HP @ 250V AC. Initial contact resistance: 15 Meg ohm (Max.); insulation resistance: 500V DC 1000 Meg ohm (Min.). Contact material: silver. Dielectric strength: 1000V AC for 1 min. Terminal material: brass - silver plate. Terminal type: screw. Condition: New
- Product Availability: Available
