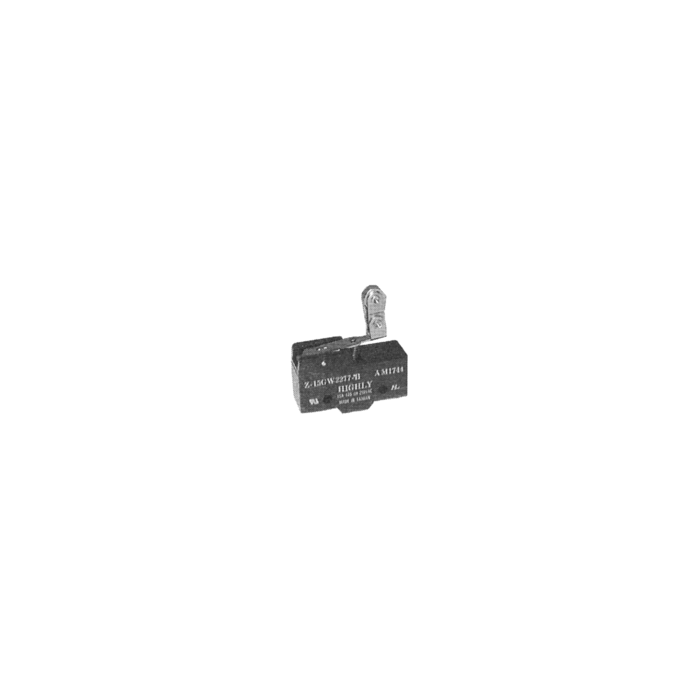

SNAP ACTION SWITCH WITH HINGED ROLLER LEVER
- Product SKU: GD134
- Product Name: SNAP ACTION SWITCH WITH HINGED ROLLER LEVER
- Manufacturer: -ASSORTED
Heavy duty snap action switch with hinged roller lever. Specification:
- Current rating: 15A @ 125/250V AC, 1/2A @ 125V DC, 1/4 HP @ 250V DC, 1/8 HP @ 125V AC, 1/4 HP @ 250V AC
- Insulation resistance: 15 Meg ohm (Max.)
- Initial contact resistance: 15 Meg ohm (Max.)
- Dielectric strength: 1000V AC for 1 min.
- Contact material: silver
- Terminal material: brass - silver plate
- Terminal type: screw
Click "more info" for additional specs. Condition: New
- Product Availability: Available
