SNAP ACTION SWITCH WITH SIDE ROLLER PLUNGER
- Product SKU: GG500
- Product Name: SNAP ACTION SWITCH WITH SIDE ROLLER PLUNGER
- Manufacturer: PHILMORE

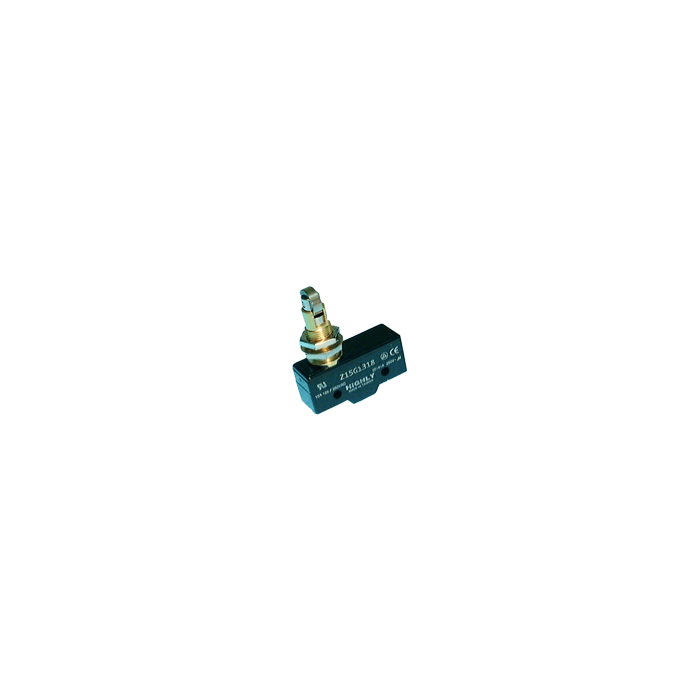

Snap-action SPDT microswitch has side roller plunger actuator. UL. Current Rating: 15A@ 125/250V AC, 1/2A@ 125V DC, 1/4 HP @ 250V DC, and 1/8 HP @ 125V AC, 1/4 HP @ 250V AC. Initial contact resistance: 15 meg ohm (max.); insulation resistance: 500V DC 1000 meg ohm (min.). Dielectric strength: 1000V AC for 1 minute. Contact material: silver. Screw terminal type; terminal material is brass - silver plate. Click "more info" for diagram. Condition: New
- Product Availability: Available
