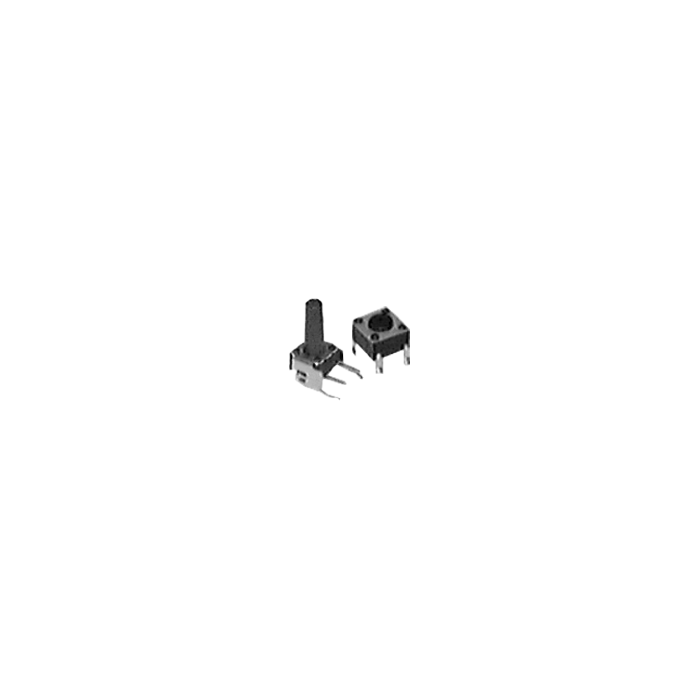

SPST TACTILE PRINTED CIRCUIT SWITCH

Printed circuit tactile switches. SPST, OFF - (ON) action. 50mA @ 125 VDC. Initial contact resistanc...
Read More
  • Product SKU: GG404
  • Product Name: SPST TACTILE PRINTED CIRCUIT SWITCH
  • Manufacturer: PHILMORE
Description:

Printed circuit tactile switches. SPST, OFF - (ON) action. 50mA @ 125 VDC. Initial contact resistance: 100 Meg ohm (Max.); insulation resistance: 100 Meg ohm (Min.) @ 500 VDC. Dielectric strength: 250V AC/ 1 minute. Terminal material: brass with silver cladding; contact material: phosphor bronze w/silver cladding. Click "more info" for diagrams.

Part No. Housing Terminal
GG405 6 x 6mm - 4.5mm H. Through Hole Mt.
GG406 6 x 6mm - 7.0mm H. Surface Mt.
GG407 6 x 6mm - 7.0mm H. Through Hole Mt.
GG408 6 x 6mm - 9.5mm H. Surface Mt.
GG409 12 x 12mm - 4.3mm H. Surface Mt.
GG410* 6 x 6mm - 11.8mm H. Through Hole Mt.

*GG410 is right angle. Condition: New

  • Product Availability: Available
SKU
GG404

Read Our Reviews

4.4
Based on 2714 reviews from certified buyers.
  • Nice people

    With small delay due to UPS but ok.

    By Richard Bronson on

  • 100% OK Best regards

    These guys managed to send me the order in 3 different packages for a better shipping quote.

    By Zack Gardner on

  • Until next time

    Would have thrown away my equipment if it wasnt for their replacement part.

    By Horace Wilson on

Add to Wishlist
main product photo

How can I help you?

Hi, I'm Marshall Duskes. Click on , pick up the phone, or use one of the other platforms here to get in touch with me about this product.

Toll Free:866-266-7638

International:514-619-6981

Printed circuit tactile switches. SPST, OFF - (ON) action. 50mA @ 125 VDC. Initial contact resistance: 100 Meg ohm (Max.); insulation resistance: 100 Meg ohm (Min.) @ 500 VDC. Dielectric strength: 250V AC/ 1 minute. Terminal material: brass with silver cladding; contact material: phosphor bronze w/silver cladding. Click "more info" for diagrams.

Part No. Housing Terminal
GG405 6 x 6mm - 4.5mm H. Through Hole Mt.
GG406 6 x 6mm - 7.0mm H. Surface Mt.
GG407 6 x 6mm - 7.0mm H. Through Hole Mt.
GG408 6 x 6mm - 9.5mm H. Surface Mt.
GG409 12 x 12mm - 4.3mm H. Surface Mt.
GG410* 6 x 6mm - 11.8mm H. Through Hole Mt.

*GG410 is right angle. Condition: New
  • Product SKU: GG404
  • Product Name: SPST TACTILE PRINTED CIRCUIT SWITCH
  • Manufacturer: PHILMORE
Description:

Printed circuit tactile switches. SPST, OFF - (ON) action. 50mA @ 125 VDC. Initial contact resistance: 100 Meg ohm (Max.); insulation resistance: 100 Meg ohm (Min.) @ 500 VDC. Dielectric strength: 250V AC/ 1 minute. Terminal material: brass with silver cladding; contact material: phosphor bronze w/silver cladding. Click "more info" for diagrams.

Part No. Housing Terminal
GG405 6 x 6mm - 4.5mm H. Through Hole Mt.
GG406 6 x 6mm - 7.0mm H. Surface Mt.
GG407 6 x 6mm - 7.0mm H. Through Hole Mt.
GG408 6 x 6mm - 9.5mm H. Surface Mt.
GG409 12 x 12mm - 4.3mm H. Surface Mt.
GG410* 6 x 6mm - 11.8mm H. Through Hole Mt.

*GG410 is right angle. Condition: New
