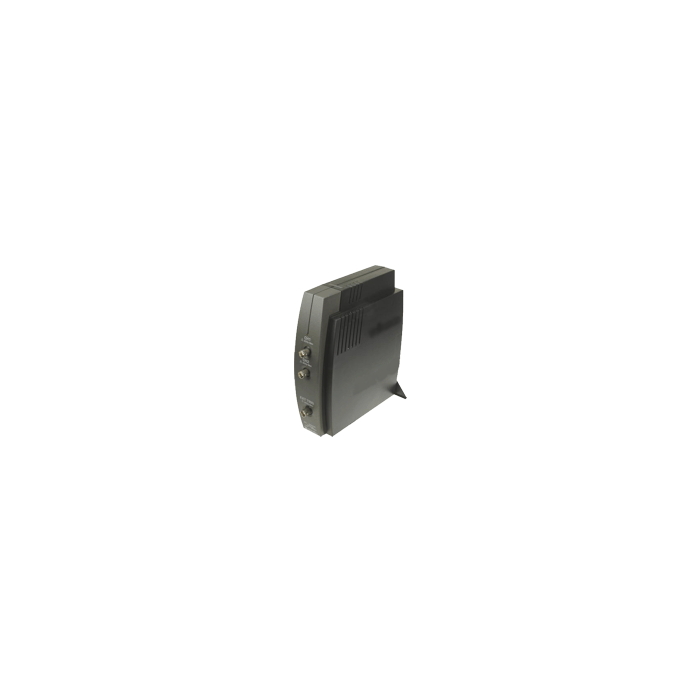

TWO-CHANNEL USB PC OSCILLOSCOPE
- Product SKU: GD257
- Product Name: TWO-CHANNEL USB PC OSCILLOSCOPE
- Manufacturer: -ASSORTED
Two-channel USB PC oscilloscope uses the power of your PC to visualize electrical signals. USB connection means no external power required. A DLL is supplied, allowing creation of your own application. Includes: USB PC oscilloscope, 2 x 60MHz scope probe, USB cable, software on CD, manual and translations on CD. General specs: inputs: 2 channels, 1 external trigger input, input impedance: 1Mohm // 30pF, bandwidth: DC to 60 MHz ±3dB, max. input voltage: 30V (AC + DC), input coupling: DC, AC and GND, Supply from USB port (500mA). Min. system requirements: IBM compatible PC, Win98SE or higher, SVGA display card (min. 800x600, 1024x768 recommended), mouse, USB port 1.1 or 2.0 compatible, and CD Rom player. Condition: New
- Product Availability: Available
