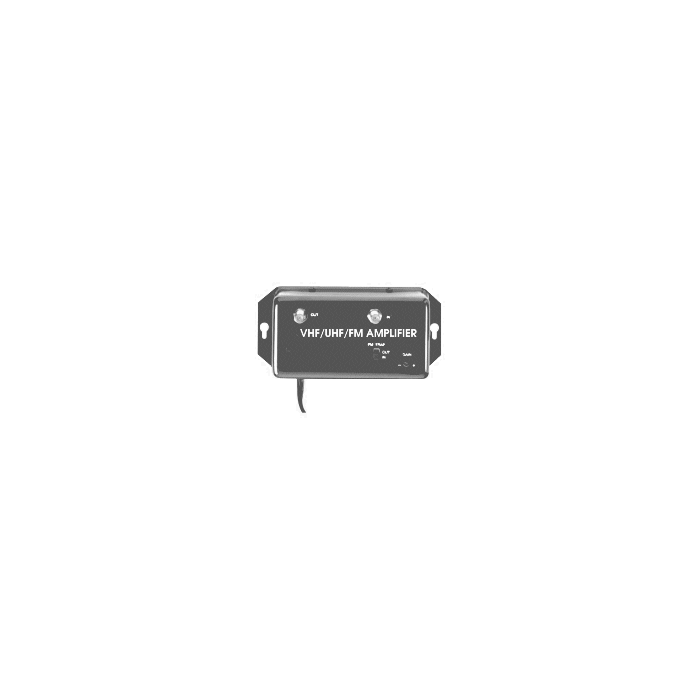

UHF/VHF/FM HIGH GAIN DISTRIBUTION AMPLIFIER WITH FM TRAP
- Product SKU: MC630
- Product Name: UHF/VHF/FM HIGH GAIN DISTRIBUTION AMPLIFIER WITH FM TRAP
- Manufacturer: -ASSORTED
Band width; 50 to 400MHz plus 470 to 890 MHz. Output capability; 40dbmV. Gain; 25db/23/db. Noise figure; 3.5db/7.5db. FM trap attenuation; -20db (switchable) 95 thru 108MHz. Input and output are 75 ohm thru "F" type connectors. Size 3-3/32" x 6-5/8" x 1-7/16". 110VAC. UL. Imported for ongoing availability. $20Ea/10
- Product Availability: Available
